AIFILTECH 4-Core Hoisting-Type Genset Exhaust Purifier

Purification rate 90%+
Element life Washable metal elements
Regeneration 1-min water rinse
Customisation 4 cores in parallel

Product Introduction

When there is no floor space in the plant room, the ceiling is the only option. This four-core unit hangs above the set's exhaust run, its weight carried by the hanger rather than the floor, and the element bank drops out downward so servicing needs no scaffold.

Specifications

Product characteristicsMetal, washed
Processing and customizationYes
BrandAIFILTECH
Purification rate90%
Applicable genset power (guide)≤200 kW (engine displacement ≤10 L)

Detailed Overview

01 Product Introduction

The AIFILTECH 4-Core Hoisting-Type Genset Exhaust Purifier is a compact dry purification unit designed for small and medium diesel generator sets. Its core is a AIFILTECH water-washable regenerative metal filter element (metal DPF, patent No. ZL 2018 1 0598975.7). Four elements work in parallel; lifting lugs and a bypass butterfly-valve pipe on top allow the whole unit to be hoisted above the genset or in-line with the exhaust piping. Particulate filtration efficiency exceeds 90% and regeneration takes one minute of water washing. Nearly 5,000 units are in service nationwide.

The octagonal box housing is compact and structurally even, fitting retrofit projects where engine-room space is tight.

Site profile: small and medium gensets have compact engine rooms and varied exhaust routing, calling for a purifier with a small footprint, easy hoisting and simple maintenance.

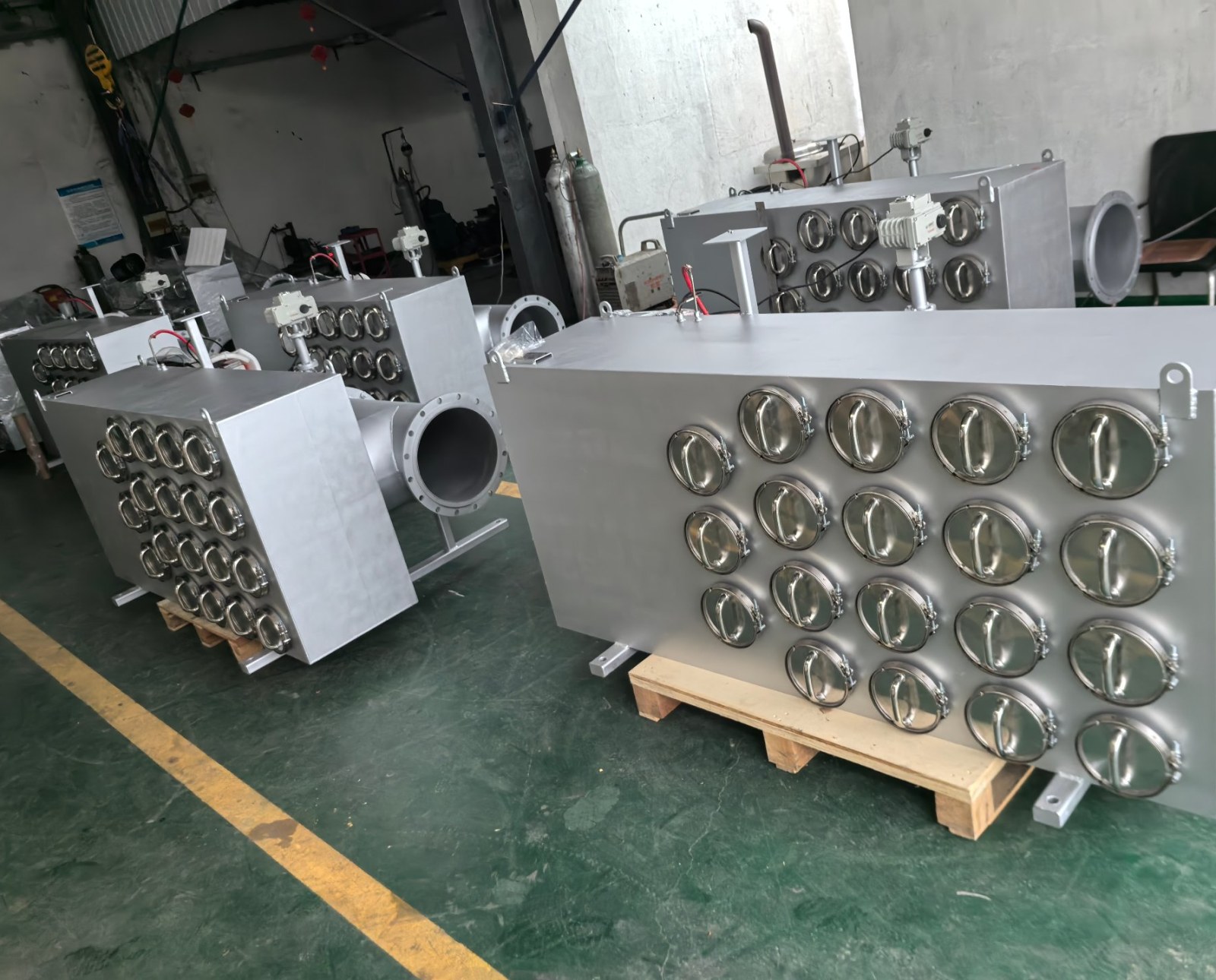

AIFILTECH 4-core hoisting-type genset exhaust purifier

02 Working Principle

Exhaust gas emitted by the diesel engine enters the AIFILTECH purifier at the inlet. The gas, laden with carbon particles, passes from the outside to the inside through the wall of each AIFILTECH filter element, where the particles are captured; the clean gas leaves through the outlet.

Several AIFILTECH elements are arranged in parallel. Hot exhaust enters the housing and passes through the outer surface of each element into its core; black smoke and carbon particles are blocked on the outer surfaces, and the cleaned gas is collected by the outlet manifold and discharged. The parallel layout raises flow capacity while lowering overall back pressure, so the high-flow exhaust of the genset is handled consistently.

Exhaust purifier structure diagram (air inlet, AIFILTECH filter element, supporting plate, mounting bracket, exhaust outlet, back pressure gauge)

As the engine runs, carbon particles accumulate on the element surfaces and system back pressure gradually rises. Once it reaches the set value, shut down the engine, release the clamps, pull out the elements and rinse them under a tap; refit and re-tighten the clamps and the unit is ready again. Initial back pressure is low and barely affects engine operation; when back pressure reaches the preset value (typically 25 kPa), an alarm can remind the operator to regenerate the elements.

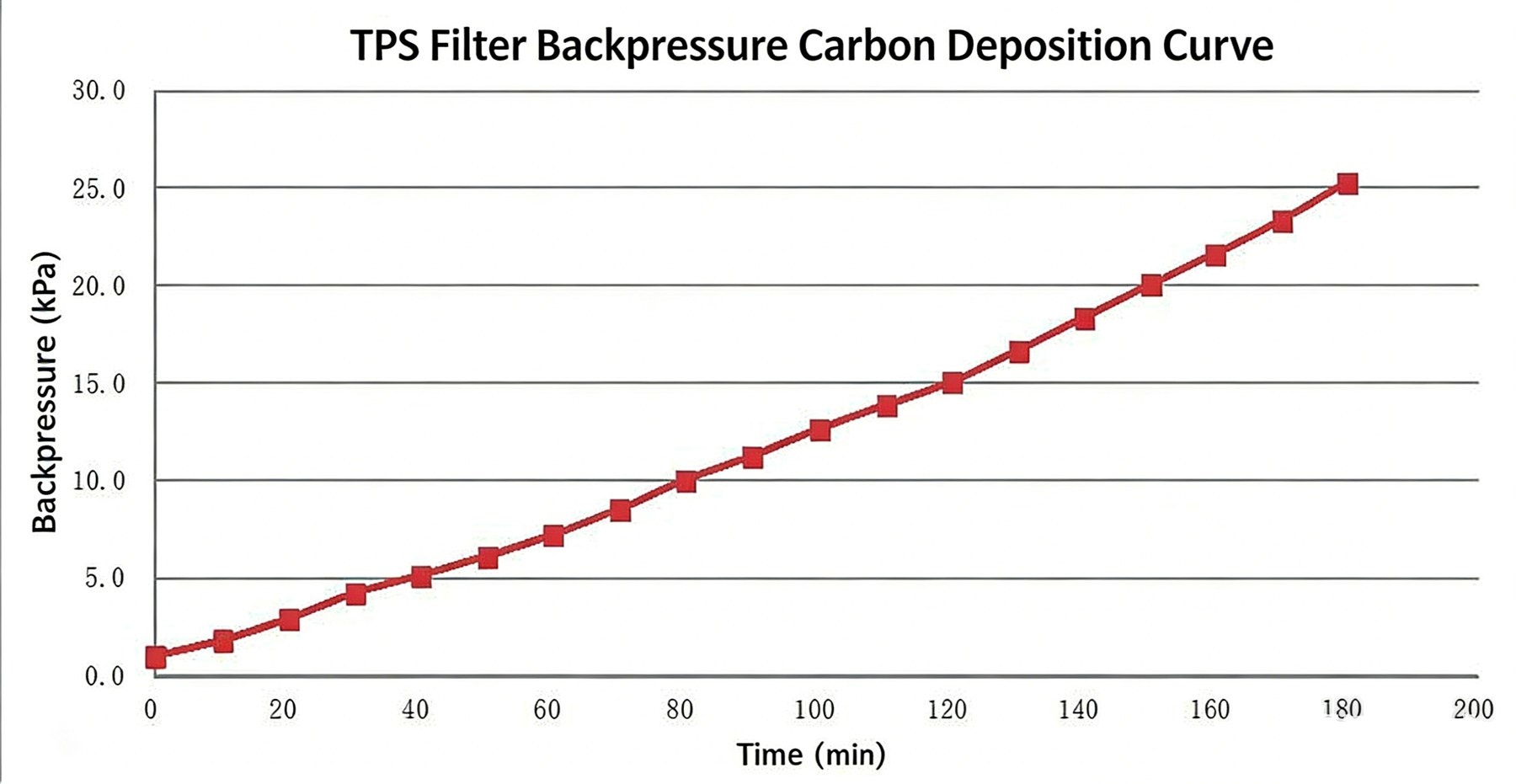

backpressure curve

03 Product Advantages

  • Particulate filtration efficiency over 90% ; measured light absorption coefficient below 0.5 m⁻¹ and Ringelmann smoke density below 1;
  • Easy maintenance: 1-minute water-washing regeneration, reusable without damage;
  • Quick to fit: clamp-on design, removed and refitted in about 30 seconds;
  • No secondary pollutants;
  • Low total cost of ownership: the retrofit is straightforward and maintenance is simple;
  • Customised by engine displacement and installation space, covering non-road machinery, road machinery and marine engines;
  • Multiple AIFILTECH elements in parallel provide a large flow area and even flow distribution, lowering overall back pressure while maintaining efficiency;
  • The dry metal core relies on no fuel additives, urea or other consumables and produces no secondary pollutants, suiting sites where wet processes are impractical;
  • Both housing and elements are metal, with heat, thermal-shock and vibration resistance, so the unit survives transport, installation and daily use.

(Terminology: DPF stands for Diesel Particulate Filter; regeneration means cleaning the loaded filter element to restore its filtration capacity.)

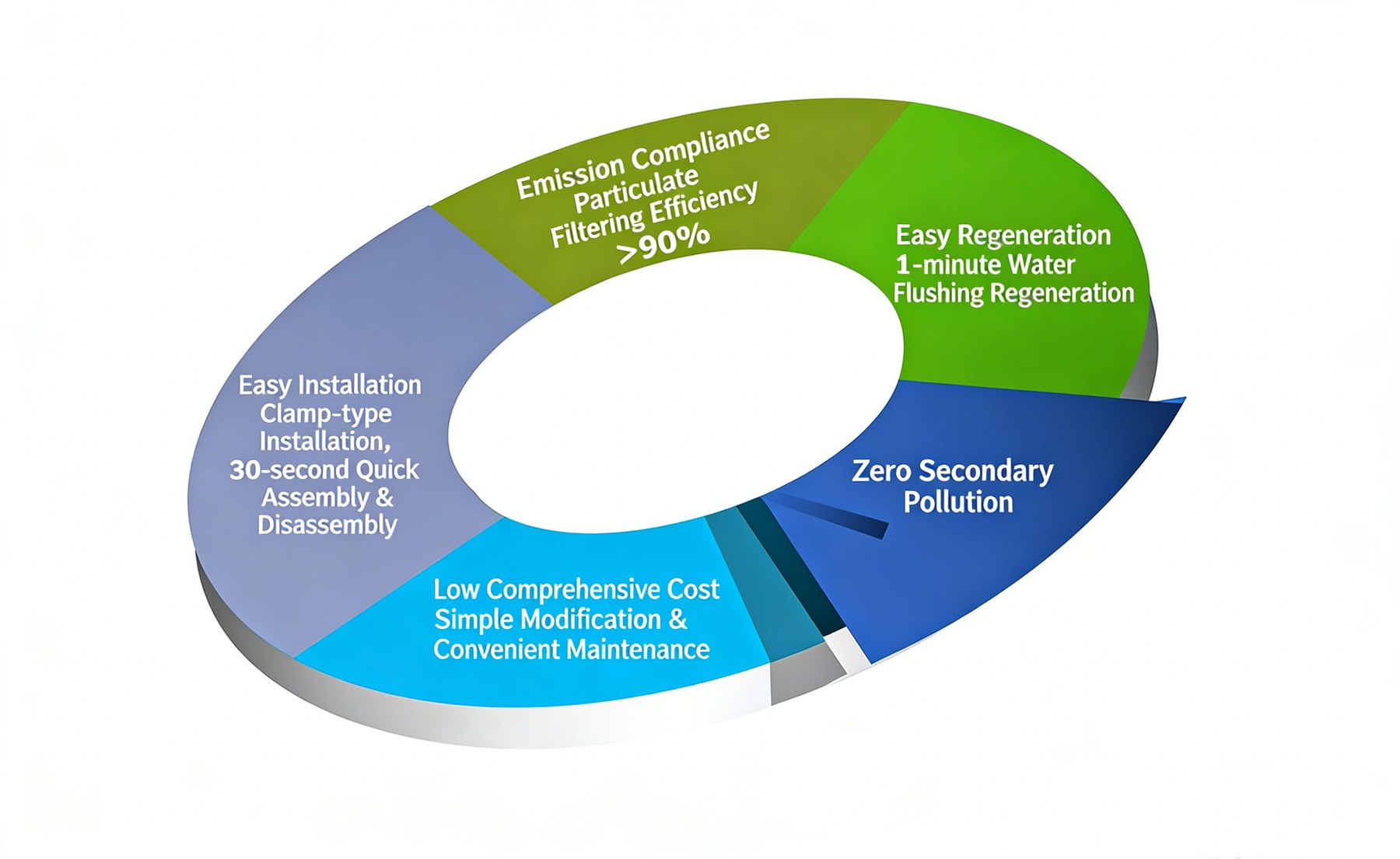

efficiency curveadvantages chart

04 Certifications & Application Cases

The unit was tested by an independent laboratory holding CMA and CNAS accreditation; the measured light absorption coefficient was below 0.5 m⁻¹.

Since the AIFILTECH water-washable regenerative metal purifier was successfully developed, this core product line has accumulated nearly 5,000 installed cases in the after-treatment industry. We joined the non-road retrofit programmes in Nanjing as early as 2018 and have completed nearly 1,000 installations in that market alone, with users across the country. The products have been applied in demanding non-road sites such as Beijing Capital International Airport, Guangzhou Baiyun International Airport, Xiamen Airport, Nanchang Airport and Nanning Airport, as well as ports, forklift fleets and construction machinery.

Applicable: diesel-powered machinery across a wide range of makes and models. Reference installations exist in each of these scenarios, and we provide selection calculations, installation guidance and commissioning support.

Sizing & selection Q&A

How do I know which model fits?

Models are sized by exhaust flow, not by vehicle length or badge power. Send the engine model, rated power or the plate photo and we confirm the exact unit.

How far does particulate drop after fitting?

The core traps particulate and the rating is stated per model under standard test conditions; field results follow exhaust flow and smoke load.

Does the core get replaced when it loads up?

No. The metal core is water-washed in about a minute and reused — unlike paper or ceramic substrates it is not a consumable.

Do I have to cut the exhaust line?

The unit replaces the silencer position with a matched sleeve or flange and clamps on in about 30 seconds. Chassis fittings stay untouched.

Will it pass the local inspection?

Limits and methods differ by market — opacity, loaded-mode and free-acceleration tests do not read the same number. Confirm the local method first, then size to it.

Applications

Diesel generator sets Construction machinery Forklifts Marine auxiliary engines Mining equipment Engine test benches Emergency power trucks Tunnel construction Airports Port terminals Construction sites Municipal roads

All data above are obtained under specific test conditions; the actual solution must be engineered to site conditions. AIFILTECH provides custom design and sizing based on actual gas volume, temperature, dust characteristics and emission limits.
