AIFILTECH Genset Exhaust Purification Control Valve Unit

Controlled item Valve + actuator
Actuation Electric / pneumatic
Status feedback Live valve position
Protection IP65
Customisation Made to site piping

Product Introduction

Motorised butterfly valve and control cabinet, IP65, electric or pneumatic — this is a balance-of-plant item, not the purifier itself. Its job is to turn a differential-pressure signal into valve travel, switching between the purifying leg and the bypass without sending anyone out to open it by hand.

Specifications

Product characteristicsElectric valve + cabinet
Processing and customizationYes
BrandAIFILTECH
ModelBy piping
ProtectionIP65
ActuationElectric / pneumatic

Detailed Overview

01 Product Introduction

The AIFILTECH Genset Exhaust Purification Control Valve Unit consists of an electric butterfly valve (pneumatic actuator optional) and a stainless control cabinet. It is the matching electrical control component for AIFILTECH genset black smoke purifiers, handling automatic switching between the purification branch and the bypass branch, back-pressure interlocking and status monitoring, and can be integrated into complete exhaust treatment systems.

The cabinet collects purifier back pressure and genset status and drives the valve automatically according to the set logic — no manual switching on site. Valve position is fed back in real time, with dry-contact or RS485 remote signalling optional. Protection rating IP65 suits humid, dusty engine rooms; bore and flange standard are made to match site piping.

Site profile: genset purification systems are spread across many sites with limited staffing, calling for highly automated, remotely monitorable control components.

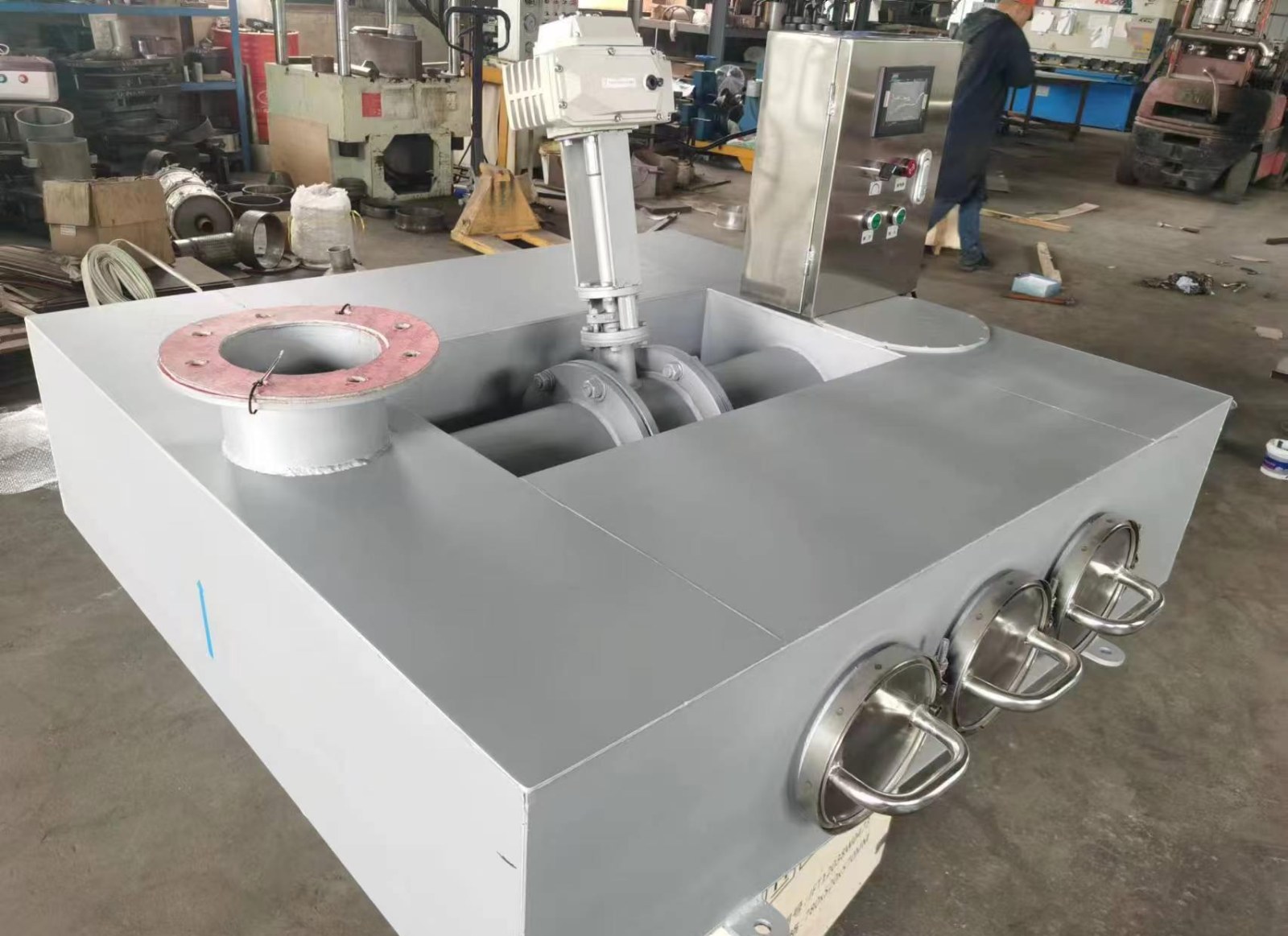

AIFILTECH genset exhaust purification control valve unit

02 Working Principle

During operation, the cabinet continuously collects the purifier inlet/outlet back pressure and the genset start-stop signals. When the genset starts, the valve directs exhaust into the purification branch where it is filtered by the AIFILTECH elements; as captured particles build up, back pressure rises and, upon reaching the set threshold, the cabinet issues a regeneration prompt and can switch exhaust to the bypass branch per the preset logic, so element regeneration can be arranged without stopping the genset.

Valve position, fault and running-status signals are indicated on the cabinet panel and can be uploaded to the control room via dry contacts or RS485 for remote monitoring and alarms.

03 Product Advantages

  • Automatic operation: switches between purification and bypass branches according to back pressure and genset status, no manual action needed on site;
  • Real-time valve position feedback; remote signalling optional (dry contact / RS485);
  • Control cabinet rated IP65 for humid, dusty engine rooms;
  • Plug-and-play integration with AIFILTECH genset black smoke purifiers;
  • Electric or pneumatic actuation optional; bore and flange standard customised to site piping;
  • Fault alarm and manual override for safe, convenient maintenance.

04 Certifications & Application Cases

As a matching component of the AIFILTECH genset exhaust purification system, this control valve unit was tested together with the system by a laboratory holding CMA and CNAS accreditation, and has been supplied in batch for genset, airport and port projects. Selection calculation, installation guidance and commissioning support are available.

Sizing & selection Q&A

How is the unit sized to my engine?

Three inputs settle it: rated power or displacement, exhaust pipe diameter, and duty cycle (continuous or intermittent). No guesswork on the model number.

Is the efficiency figure measured or nominal?

The figure comes from a standard-condition test, not from any duty cycle. Load factor, fuel sulfur and backpressure all move the measured number.

How often does it need servicing?

There is no fixed interval; watch backpressure and smoke colour. Idle-heavy duty and poor fuel bring it on sooner. A wash takes a minute.

Any chassis modification needed?

No cutting and no chassis work. It clamps at the original silencer location and releases in about 30 seconds for transfer or inspection.

Which limit does it target?

It is built to the in-use limit of the target market, not to another country’s standard. A common path: fit one unit, re-test, then scale.

Applications

Diesel generator sets Construction machinery Forklifts Marine auxiliary engines Mining equipment Engine test benches Emergency power trucks Tunnel construction Airports Port terminals Construction sites Municipal roads

All data above are obtained under specific test conditions; the actual solution must be engineered to site conditions. AIFILTECH provides custom design and sizing based on actual gas volume, temperature, dust characteristics and emission limits.
