Crane exhaust gas purifier

Guangzhou TUOKAI Environmental Protection Technology Co., Ltd. was founded by professionals with over 20 years of experience in high-temperature flue gas treatment and diesel engine exhaust after-treatment, holds multiple independent intellectual property rights, and professionally supplies high-temperature flue gas (exhaust) treatment products and equipment for a wide range of applications.

The Crane exhaust gas purifier is a new-generation black smoke purifier developed by AIFILTECH on the basis of independent intellectual property. Its core is a TPS water-washable regenerative metal filter element (metal DPF, patent No. ZL 2018 1 0598975.7) made from special high-temperature-resistant, corrosion-resistant metal media through more than 30 processes. Particulate filtration efficiency reaches over 90%, regeneration by water washing takes about one minute, and the unit offers consistent emission compliance, no secondary pollutants, a long service life, high resistance to damage, good cost performance and simple installation. It is suitable for cranes serving ports, construction sites and logistics parks. Nearly 5,000 sets are in service across China.

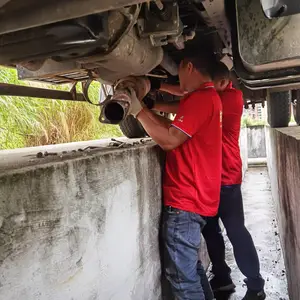

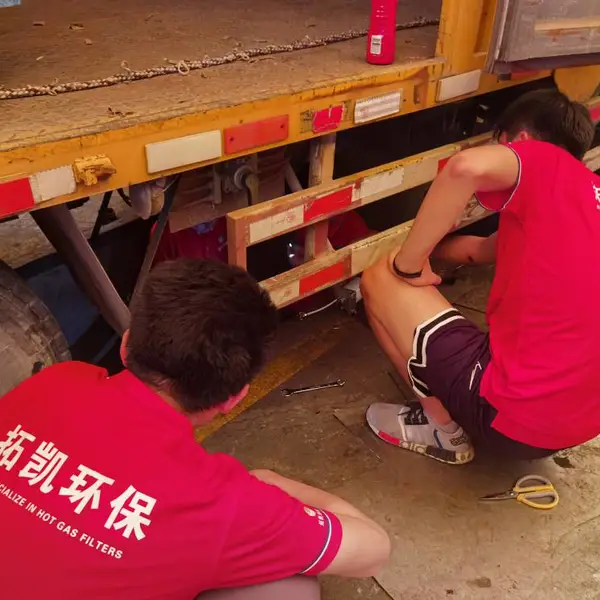

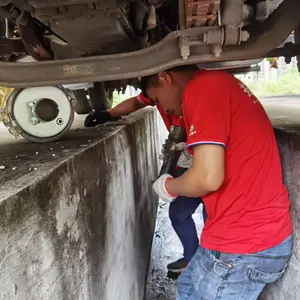

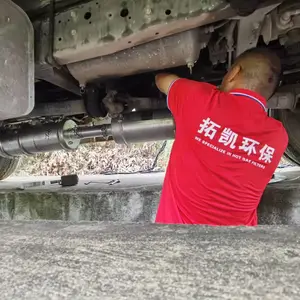

Sized to crane engine displacement and the space beside the boom, pipe routing and mounting angle can be adapted to the vehicle layout without disturbing existing electrical or hydraulic lines.

Working conditions: Cranes typically work in intermittent heavy-load duty with the engine at medium-to-high load for long periods, and smoke opacity and temperature vary widely.

Exhaust gas emitted by diesel engines enters the air inlet of the AIFILTECH exhaust filtration system. The gas, laden with carbon particles, passes from the outside to the inside through the TPS filter element, where the particles are captured by the element wall and the clean gas is discharged into the atmosphere from the air outlet.

Hot exhaust enters the housing and passes through the outer surface of the core into the element body; black smoke and carbon particles are blocked on the outer surface, and the cleaned gas is collected through the core outlet and discharged from the exhaust port.

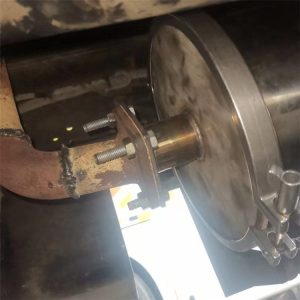

As the engine runs continuously, carbon particles accumulate on the outer surface of the core and system back pressure gradually rises. Once back pressure reaches the set value, the machine can be stopped, the clamp removed, the core pulled out and rinsed clean under a tap, then reinstalled into the housing and the clamp retightened for further use — a cycle that repeats. Initial back pressure is as low as 1 kPa, so normal engine operation is barely affected. The specially designed particulate trap offers high soot-holding capacity and long service intervals with low maintenance. When back pressure reaches the preset value (generally 25 kPa), an alarm can be set to remind the operator to regenerate the core.

The product has passed tests by CMA, CAL, ILAC-MRA and CNAS accredited laboratories and obtained a qualified report, with a measured light absorption coefficient of less than 0.5 m⁻¹, meeting current emission standards.

Since the AIFILTECH water-washable regenerative metal purifier was successfully developed, the core product has accumulated nearly 5,000 sets of application cases in the after-treatment industry and has grown into a core equipment supplier for mainstream non-road diesel vehicle retrofit and purification in China. As early as 2018 the company took part in the non-road vehicle retrofit programme in Nanjing through its channels and now has nearly 1,000 successful cases in the Nanjing market, with users across the country. The product has been applied in demanding non-road scenarios such as Beijing Capital International Airport, Guangzhou Baiyun Airport, Xiamen Airport, Nanchang Airport and Nanning Airport, and is widely used at port terminals, in enterprise forklift fleets and on engineering machinery.

Typical applications: cranes serving ports, construction sites and logistics parks. The model is already in volume service in these applications, with selection calculation, installation guidance and commissioning support provided.
