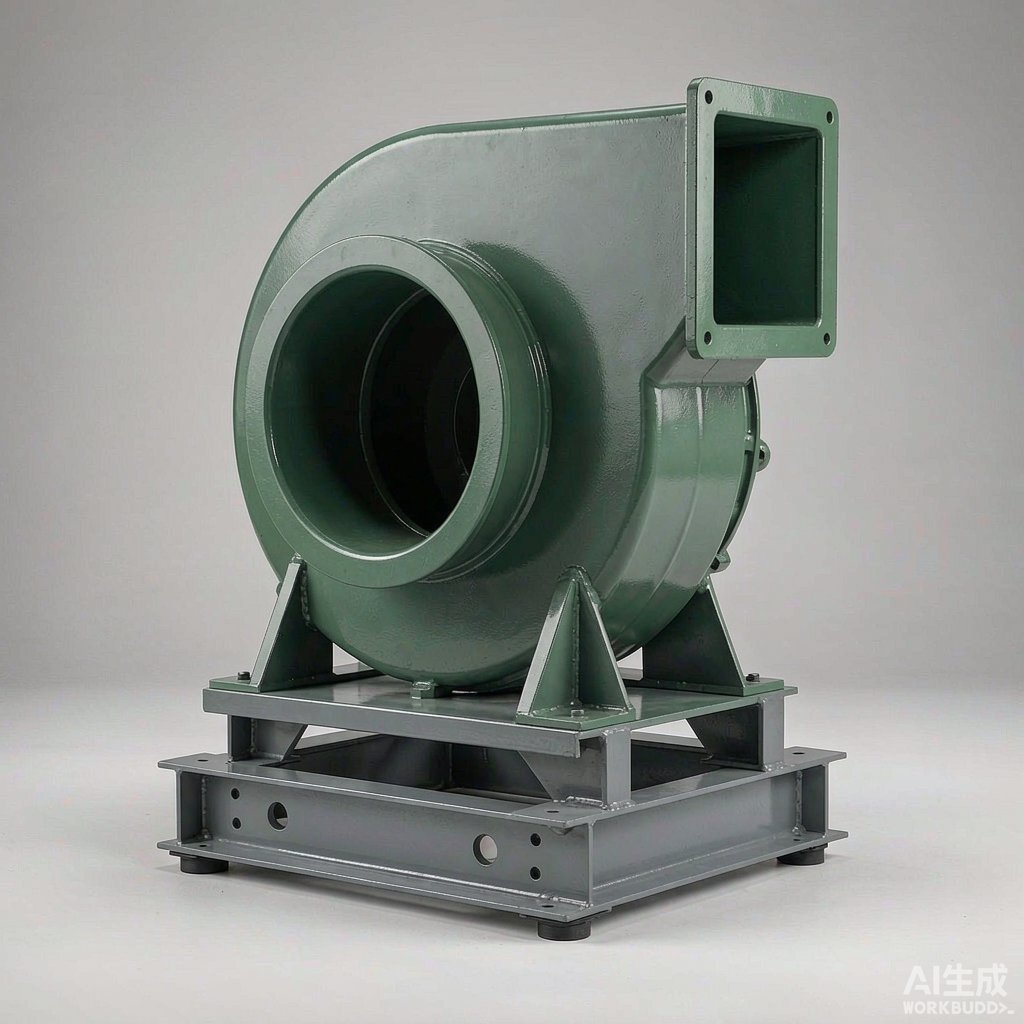

AIFILTECH High-Temperature Induced Draft Fan

Media temp Up to 650 °C
Flow Up to 200k m³/h
Drive VFD option

Product Introduction

High-temperature induced draft fans use heat-resistant steel impellers with water/air-cooled bearing housings for media up to 250-650 °C - drawing and conveying hot flue gas in kilns, boilers, drying lines and dust collection systems.

Specifications

FeaturesHeat-resistant steel impeller
CustomBy selection
BrandAIFILTECH
Media temperature250-650 ℃
Air flow1000-200000 m³/h
Cooling水冷/风冷
Drive直联/皮带+变频optional
Material耐热合金钢

Detailed Overview

01 Product Overview

The ID fan consists of a heat-resistant alloy steel impeller (dynamically balanced), casing, water- or air-cooled bearing housing and drive set. The impeller retains strength and stiffness at temperature, while cooled bearings stay within safe limits. VFD motors and soft starters allow airflow adjustment to process conditions.

02 Performance & Mechanism

The motor drives the impeller through coupling or belt; gas gains kinetic and pressure energy by centrifugal force and exits the volute while the inlet draws in flue gas continuously. Water-cooled bearings block heat conduction for long bearing life in hot service.

03 Advantages

  • Media temperature 250-650 °C with heat-resistant steel impeller; 2. Water/air-cooled bearings for continuous hot operation; 3. Dynamically balanced for low vibration and noise; 4. VFD option for airflow matching; 5. Flow range 1,000-200,000 m3/h.

04 Applications

For ceramic and brick kilns, boiler flue gas, drying lines and upstream of high-temperature dust collectors. Selection calculation (flow/pressure/media temperature), foundation drawings and commissioning support.

Sizing & selection Q&A

What is the temperature limit?

Up to 250-650 °C in heat-resistant alloy steel. Near the ceiling, dust loading and gas velocity matter as much as temperature — reading one figure alone leads to the wrong impeller grade.

Do you take customer drawings?

We do — a drawing or a sample is enough to start, with tolerances agreed before quoting.

What is the delivery time?

stock items go out same day, non-standard follows the production schedule.

How is a sample charged?

Samples are quoted as a small batch and credited against the volume order, per the quotation.

Applications

Kiln exhaust Boiler flue gas Drying lines Custom

All data above are obtained under specific test conditions; the actual solution must be engineered to site conditions. AIFILTECH provides custom design and sizing based on actual gas volume, temperature, dust characteristics and emission limits.
