AIFILTECH Metal Filter Elements incl. Large Marine Filter Baskets

Filtration Rating 0.22~100μm
Porosity 28%~50%
Process Multi-material custom

Product Introduction

Metal filter elements use sintered metal felt, wire mesh or wedge wire media - strong and back-flushable - in ranges including large marine filter baskets, conical and pleated cartridges for marine, chemical, polymer and hot gas filtration.

Specifications

Filtration rating0.22-100 μm (0.45/1/3/5/10/20/30/50/80/100 μm 标准档)
Porosity28%-50%
Material316L/310S/钛/镍/哈氏合金等
Temperature280 ℃ (湿态粉末钛)-650 ℃ (合金)
结构粉末烧结/烧结网/烧结毡 多工艺
反冲洗支持在线反吹再生

Detailed Overview

01 Product Overview

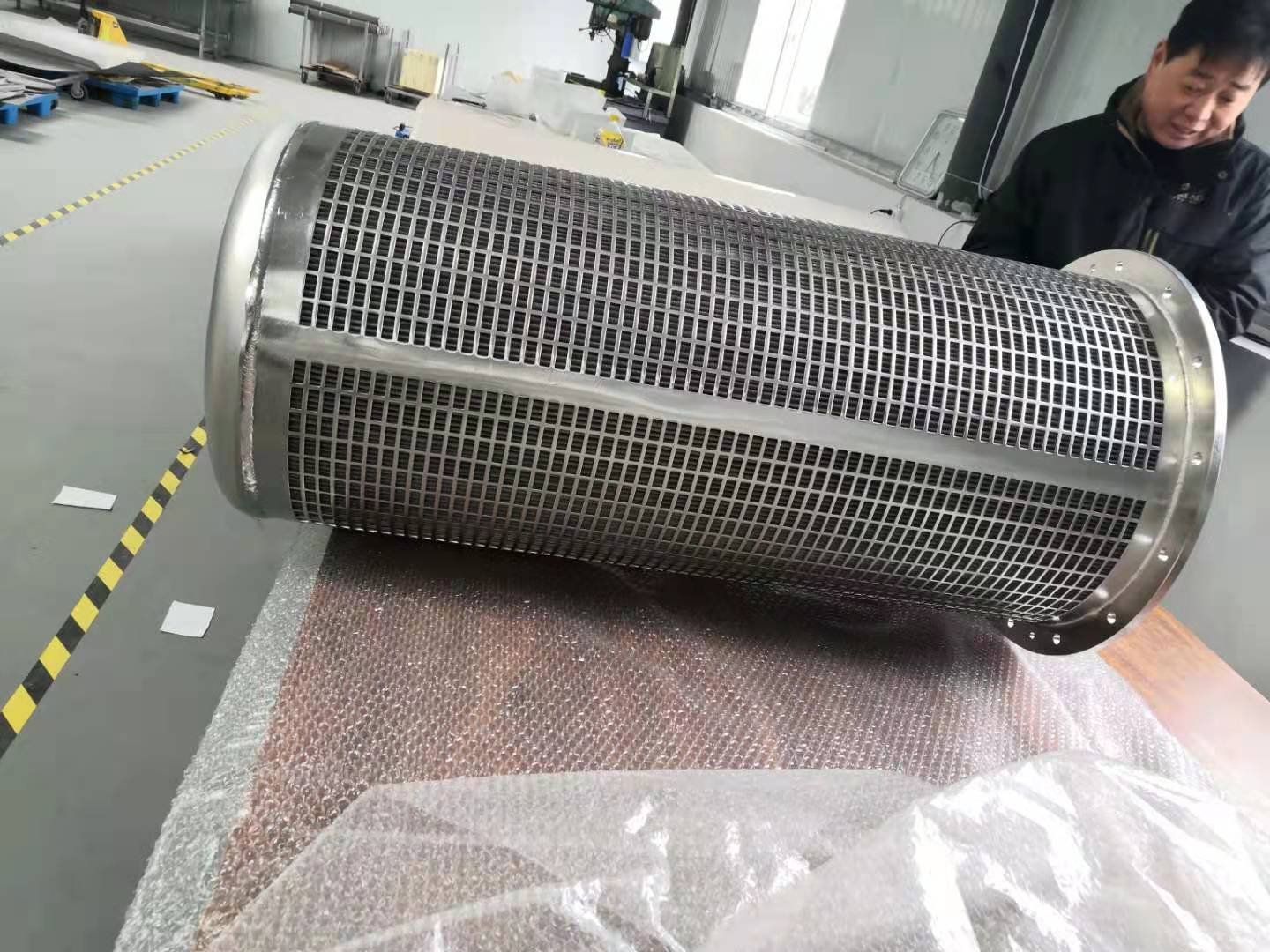

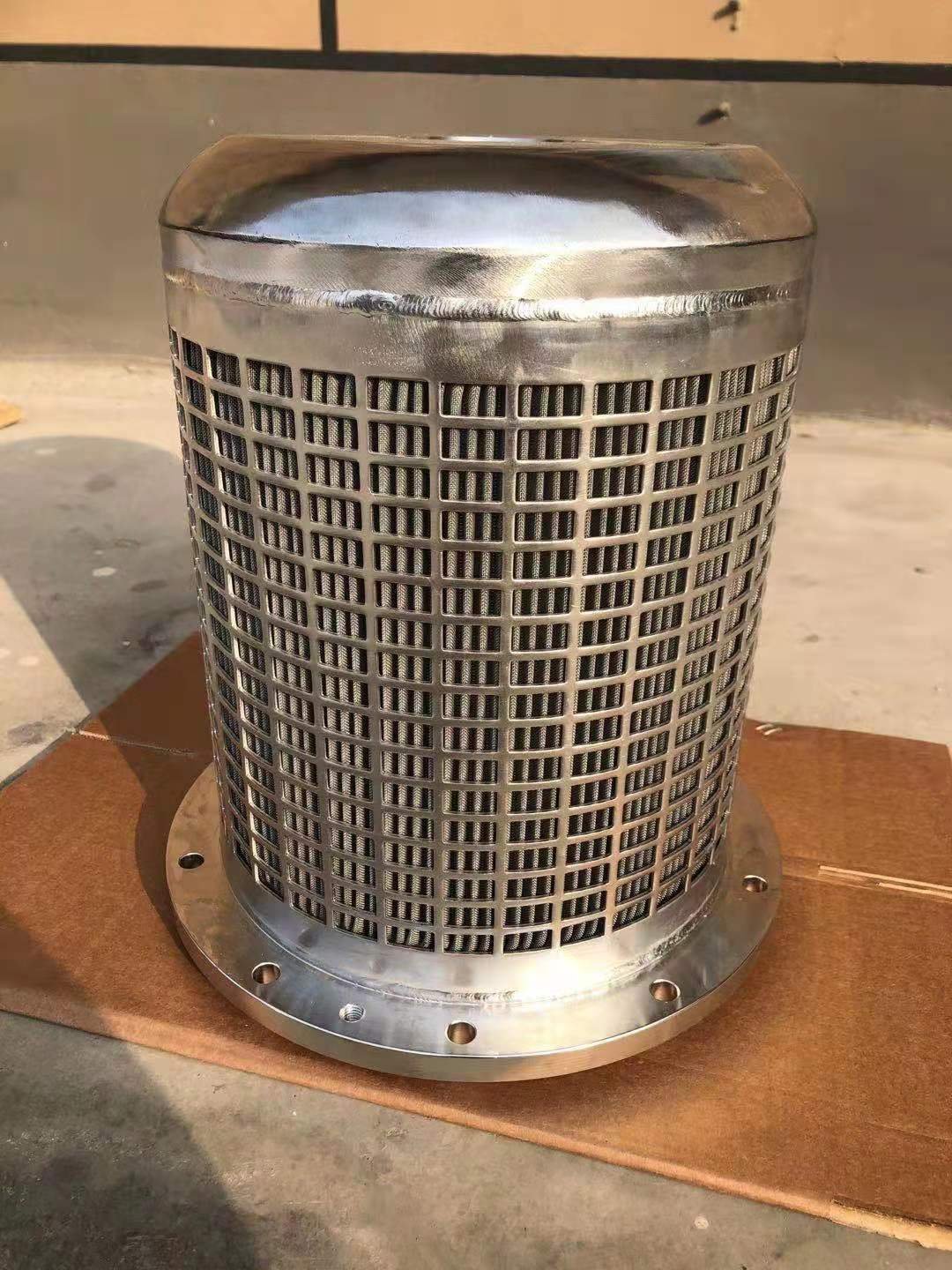

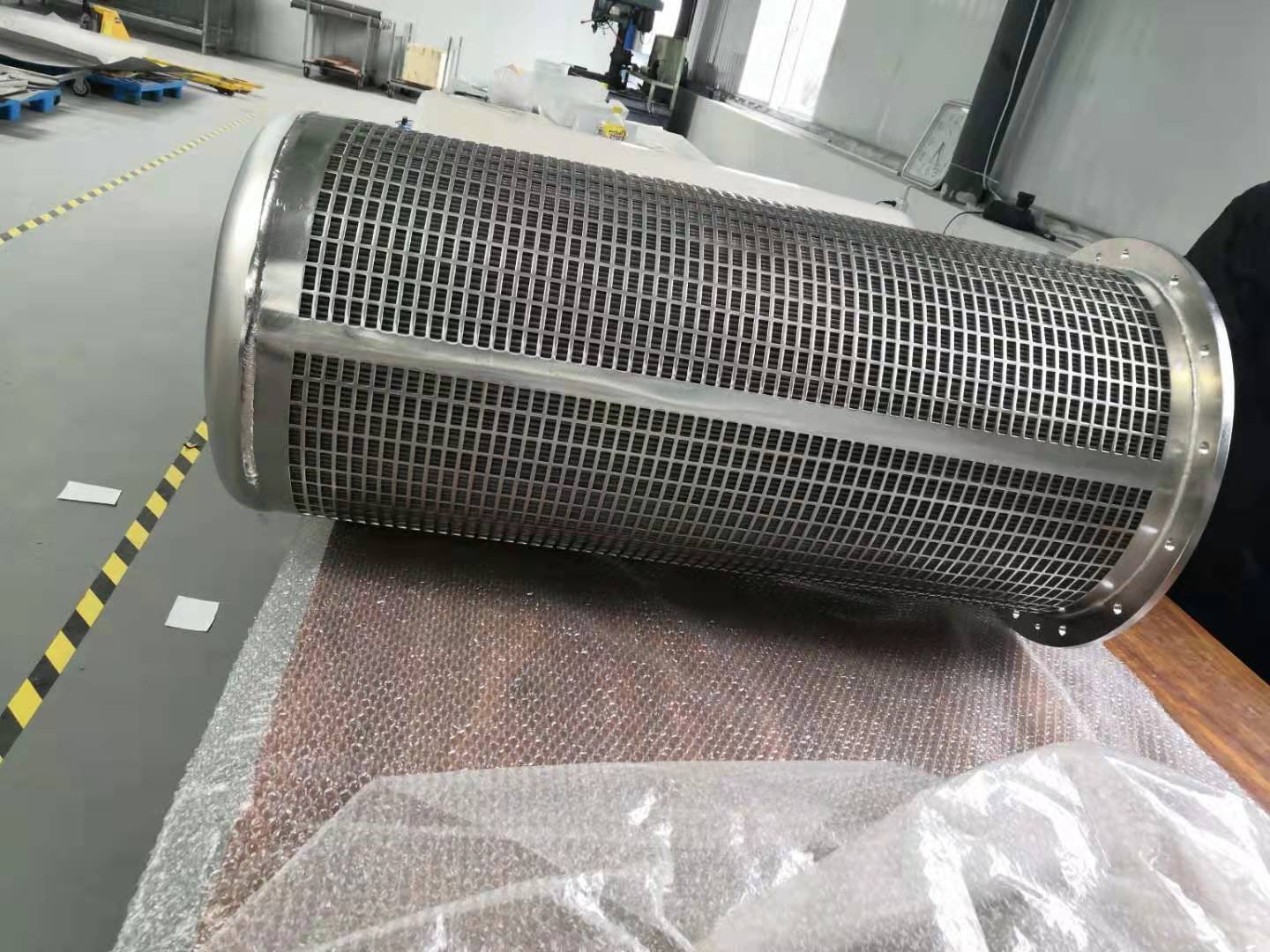

Metal filter elements combine metal media (sintered felt, wire mesh or wedge wire) with stainless steel support tubes and end caps by welding or edging, withstanding high differential pressure and vibration without deformation or shedding. The range covers large marine filter baskets (over 500 mm diameter), conical temporary strainers, pleated large-area cartridges and stacked-disc elements, from coarse to micron-rated filtration.

02 Working Principle

Metal filter elements cover two process routes: powder sintering and sintered mesh/felt. Powder-sintered titanium elements offer 0.22-100 μm filtration ratings (standard grades 0.45/1/3/5/10/20/30/50/80/100 μm) with 28-50% porosity, low flow resistance and high permeation efficiency, while sintered mesh/felt elements use graded pore structures for high dirt-holding capacity and long service intervals. Materials include 316L, 310S, titanium and nickel for media from 280 °C (wet titanium powder) up to 650 °C; online backwashing regeneration is supported. Applications include marine ballast water, polyester melt, chemical liquids and precision gas filtration.

03 Advantages

  • High strength and differential pressure capacity, no deformation or shedding; 2. Regenerable by back-flush, backwash and ultrasonic cleaning; 3. Strong custom capability for large marine baskets; 4. Full range from coarse to micron-rated; 5. Temperature and pressure resistant for severe duty.

04 Applications

For marine seawater/fuel/lube filtration, chemical and polymer feed filtration, hot gas dedusting, steam filtration and temporary conical strainers. Custom diameter, length, connection and rating to drawing.

Sizing & selection Q&A

Which material, and up to what temperature?

316L, 310S, titanium, nickel and Hastelloy, rated from 280 °C (wet-process titanium powder) to 650 °C (alloys). The grade follows media temperature, corrosion and erosion — never the lowest quotation.

What rating can you hold?

Rated 0.22-100 μm, with 0.45/1/3/5/10/20/30/50/80/100 μm as standard grades; the rating is selected within that band for the duty, and finer ratings shorten the backwash interval.

Can it be built to drawing?

Yes — tooling for moulded parts, cut-to-size for sheet and felt, welded assemblies included.

Minimum order and lead time?

Small trial batches are accepted and common sizes are held in stock.

Can we validate a sample first?

Yes. A small batch can be produced from your drawing or sample, run on your line, and scaled up only after both sides accept the result.

Applications

Marine filtration Chemical filtration Hot gas Custom
Need the full technical data? Download the PDF datasheet for complete technical data, key figures and selection guidance.
Download Datasheet

All data above are obtained under specific test conditions; the actual solution must be engineered to site conditions. AIFILTECH provides custom design and sizing based on actual gas volume, temperature, dust characteristics and emission limits.
