AIFILTECH Modular High-Temp Dust Collector - Integrated Hot Gas Filtration Unit

Airflow 3000~50000 m³/h
Integration 5-in-1 integration
Control PLC automatic

Product Introduction

AIFILTECH modular high-temp dust collectors integrate the filter casing, hopper, rotary discharge valve, high-pressure fan and control cabinet in one unit, fully commissioned before shipment - install, connect and run. Single-unit capacity 3000-50000 m3/h, expandable by parallel operation.

Specifications

FeaturesIntegrated unit
CustomYes
BrandAIFILTECH
处理Air flow3000-50000 m³/h
Filter element滤筒/滤管optional
Ash discharge星型Ash discharge阀连续排灰
ControlPLC auto / on-pressure cleaning
Fan高压离心Fan内置

Detailed Overview

01 Product Overview

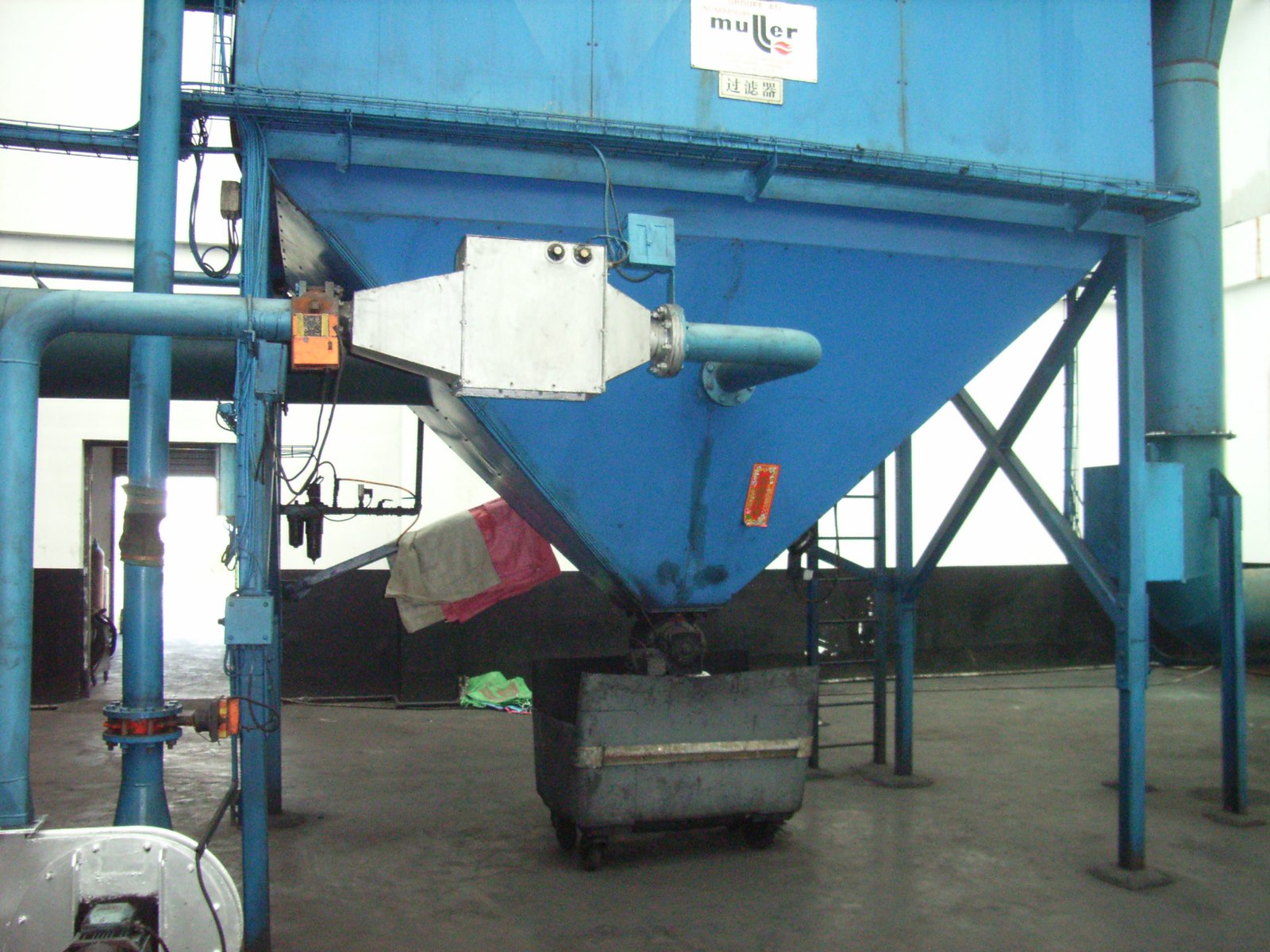

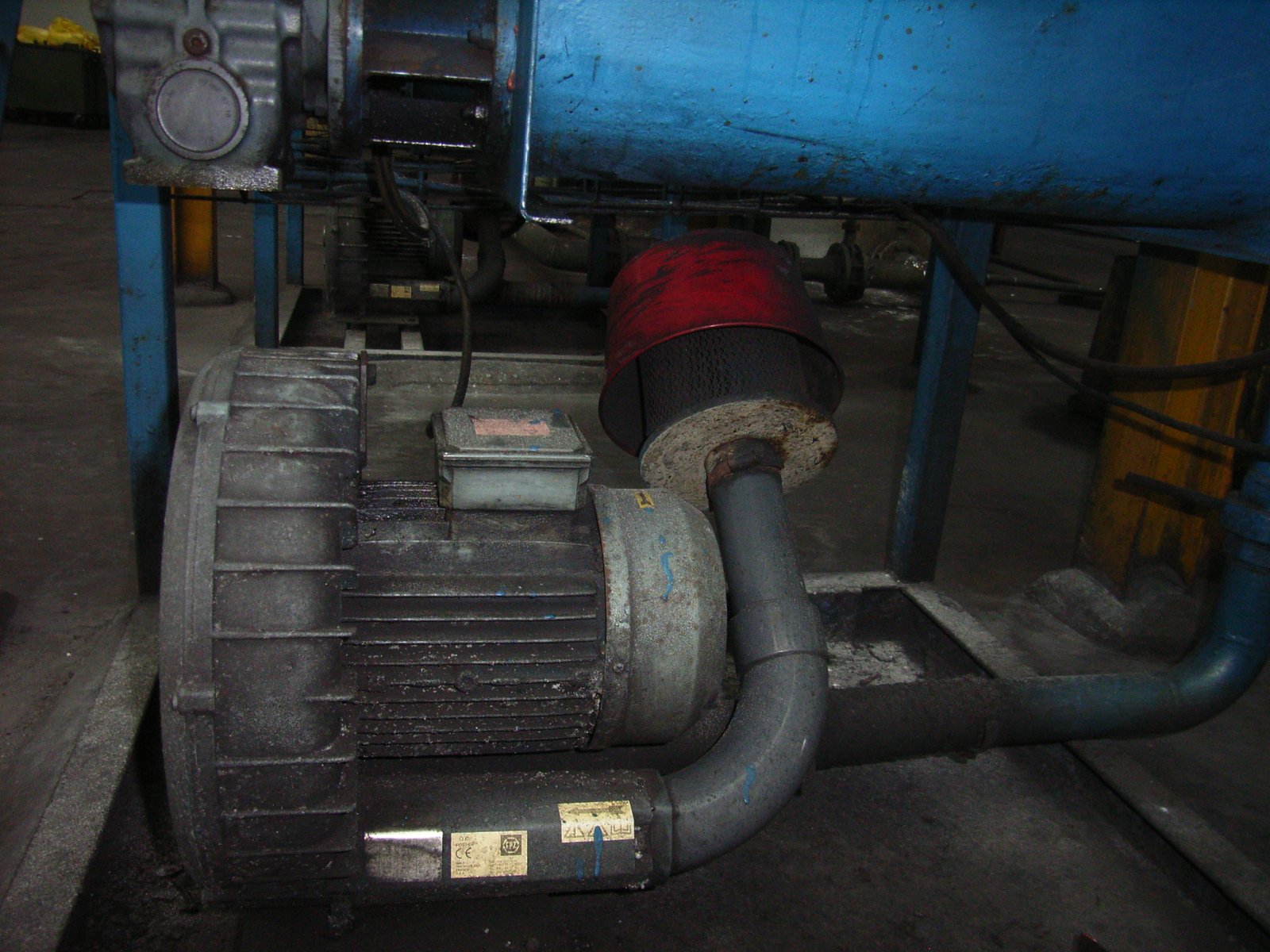

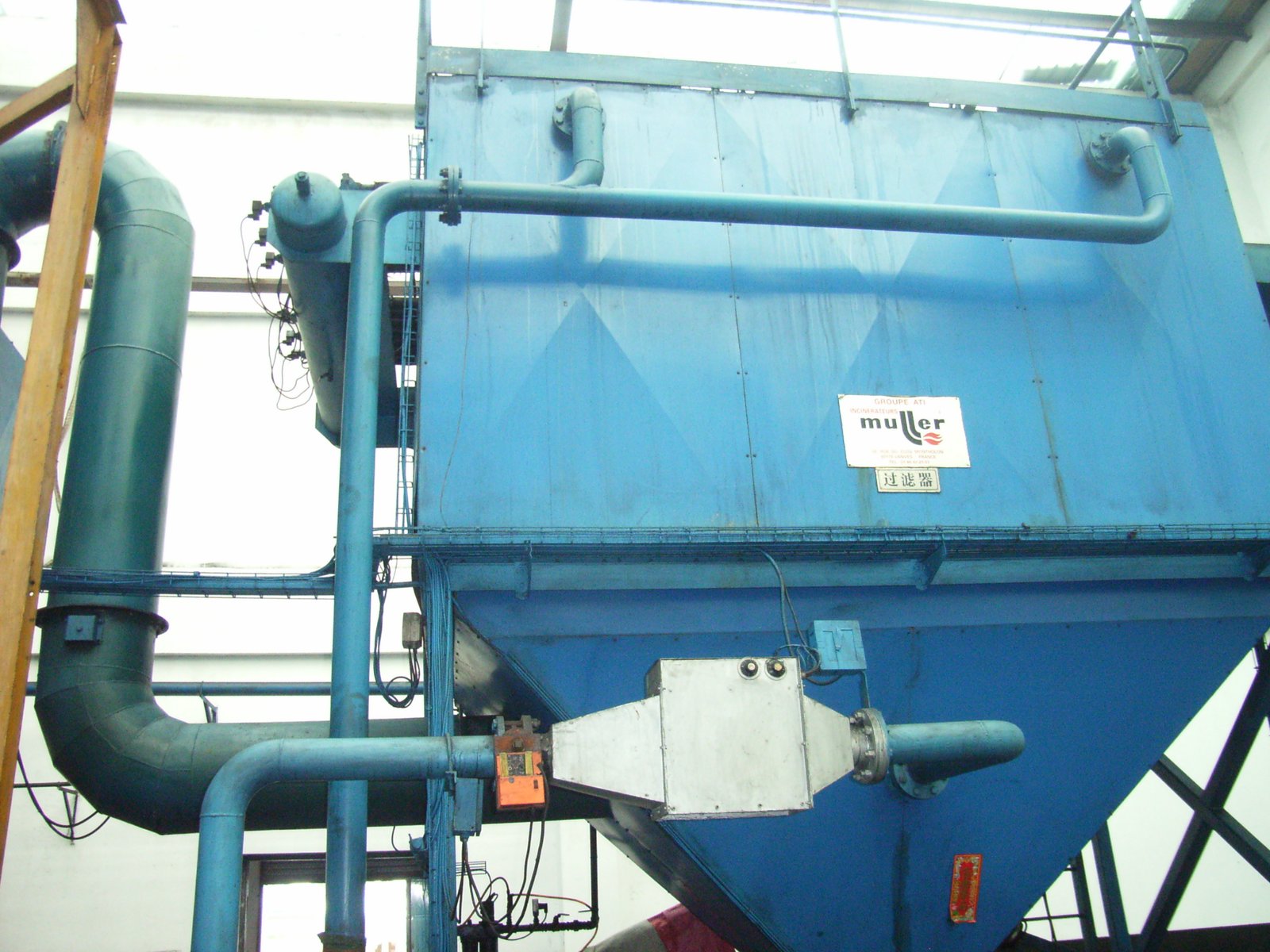

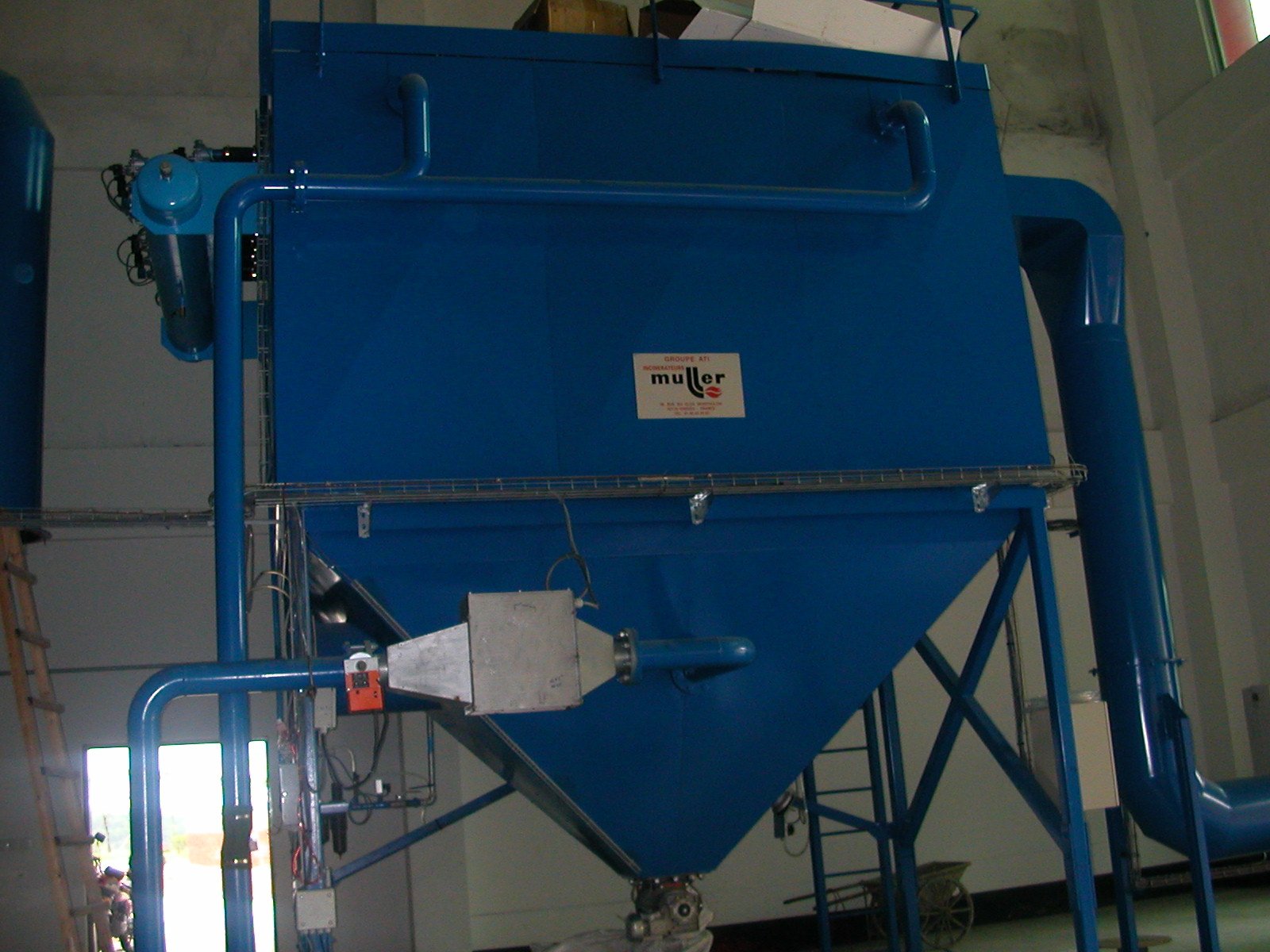

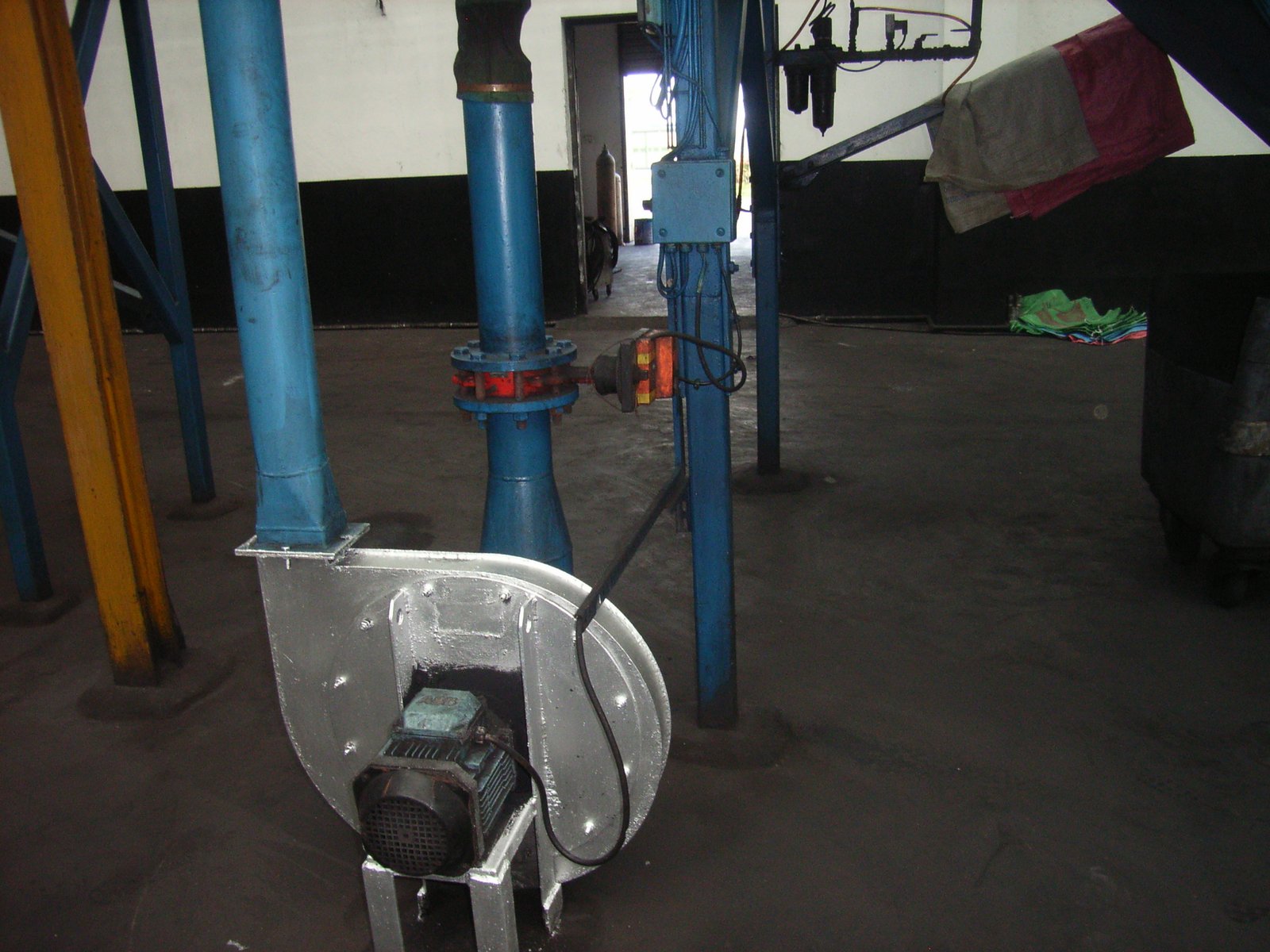

The unit features an integrated design: upper filter casing with cartridges/tubes, middle conical hopper with rotary discharge valve for continuous ash removal, and a steel base frame carrying the high-pressure centrifugal fan and pulse-cleaning control cabinet. Welding inspection, air-tightness test and trial run are completed before shipment; on site, only ducts, power and compressed air need connecting - greatly shortening installation time. Suitable for concentrated workshop dust control, process exhaust pre-treatment, or in series with heat exchangers and adsorption towers.

02 Working Principle

Dust-laden gas enters at the hopper section where large particles settle by inertia; finer particles rise with the airflow into the filter section and are captured on the cartridge/tube surface, while clean gas is drawn out by the fan. A differential pressure gauge monitors filter resistance; at the set point the pulse controller automatically cleans row by row, and the discharge valve removes ash on timer - fully automatic operation throughout.

03 Advantages

  • Five-in-one design - filtration, cleaning, discharge, fan and control, commissioned as a whole; 2. Install-connect-run on site, cutting installation time by over 60% vs split systems; 3. 3000-50000 m3/h per unit, flexibly expandable in parallel; 4. PLC automatic control - on-pressure cleaning, timed discharge and fault alarms; 5. Optional high-temperature filter media and insulation for hot gas duty.

04 Applications

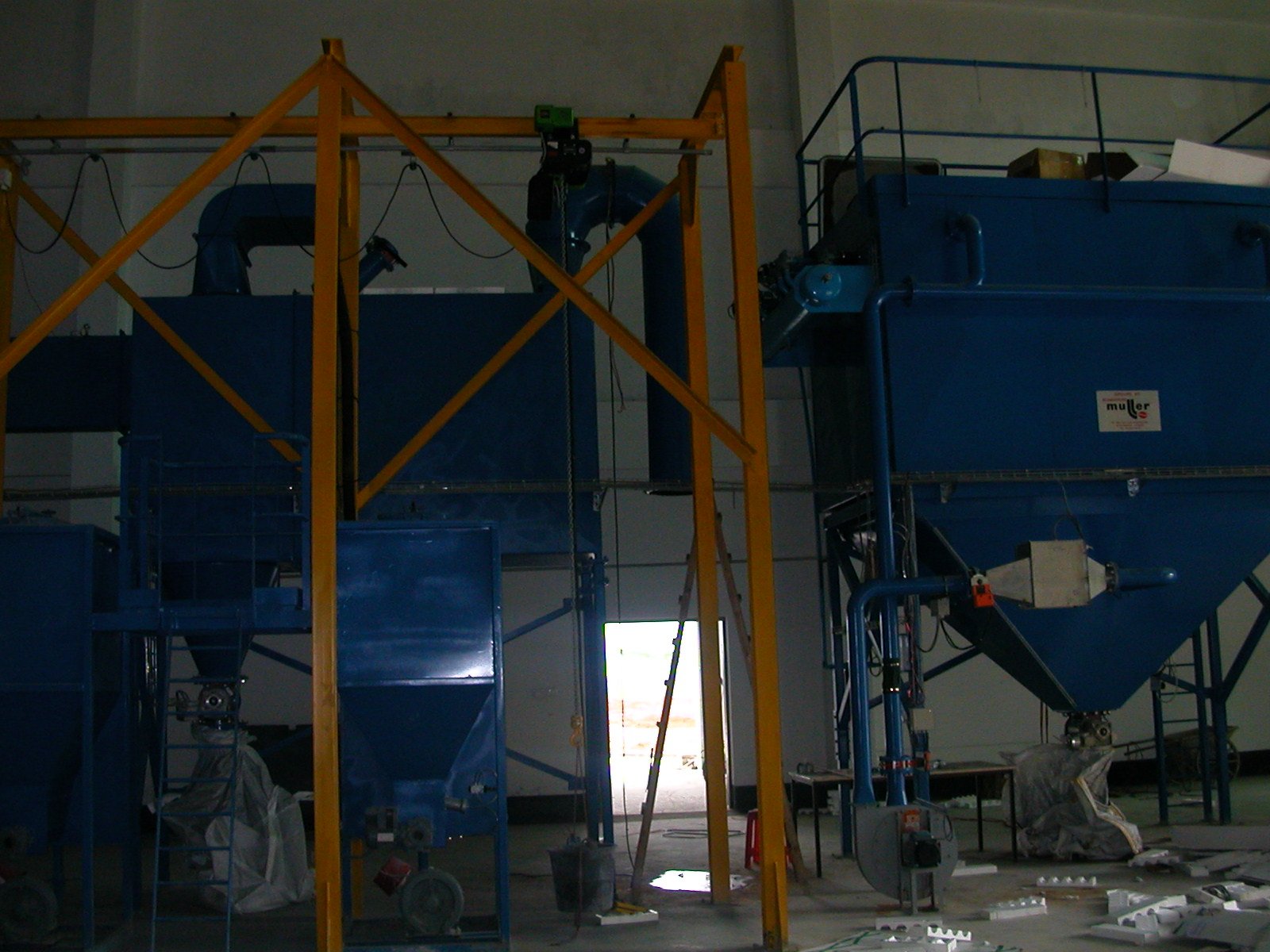

Applied to foundry workshops, grinding and polishing, cutting stations, boiler and kiln exhaust dust control. Single-unit or parallel multi-unit layouts are available per space and air volume, supporting rooftop and outdoor installation.

Sizing & selection Q&A

What emission level can the system hold?

With ceramic tubes or metal bags as the core media, particulate is held below 5 mg/Nm³; the acceptance figure follows the monitoring method in the contract.

What is inside the battery limit?

Casing, tube sheet, media, cleaning and ash handling, fan and controls — supplied as a complete system, or as main unit and media only.

Does maintenance need a shutdown?

Leak detection and access are online; media change is done compartment by compartment, so the line keeps running.

What do you need from me to quote?

Flow rate, temperature and gas composition, plus the installation envelope. Those three are enough for a proposal; the rest is settled at technical agreement stage.

Applications

Workshop dust Boiler duty Grinding & cutting Kiln exhaust

All data above are obtained under specific test conditions; the actual solution must be engineered to site conditions. AIFILTECH provides custom design and sizing based on actual gas volume, temperature, dust characteristics and emission limits.
