AIFILTECH Pulse-Jet Cleaning System - Dust Collector Cleaning Components

Pressure 0.4~0.6 MPa
Cleaning Online row-by-row
Control Differential pressure

Product Introduction

AIFILTECH pulse-jet cleaning systems include pulse valves, blow pipes, air manifolds and differential pressure controllers, operating at 0.4-0.6 MPa - fitting tube, cartridge and bag collectors for online row-by-row cleaning and long-term low-pressure-drop operation.

Specifications

FeaturesOnline row-by-row cleaning
CustomYes
BrandAIFILTECH
喷吹压力0.4-0.6 MPa
Composition气包/脉冲阀/喷吹管/Control仪
Control压差/定时optional
CompatibilityTube / cartridge / bag
Maintenance在线不停机Maintenance

Detailed Overview

01 Product Overview

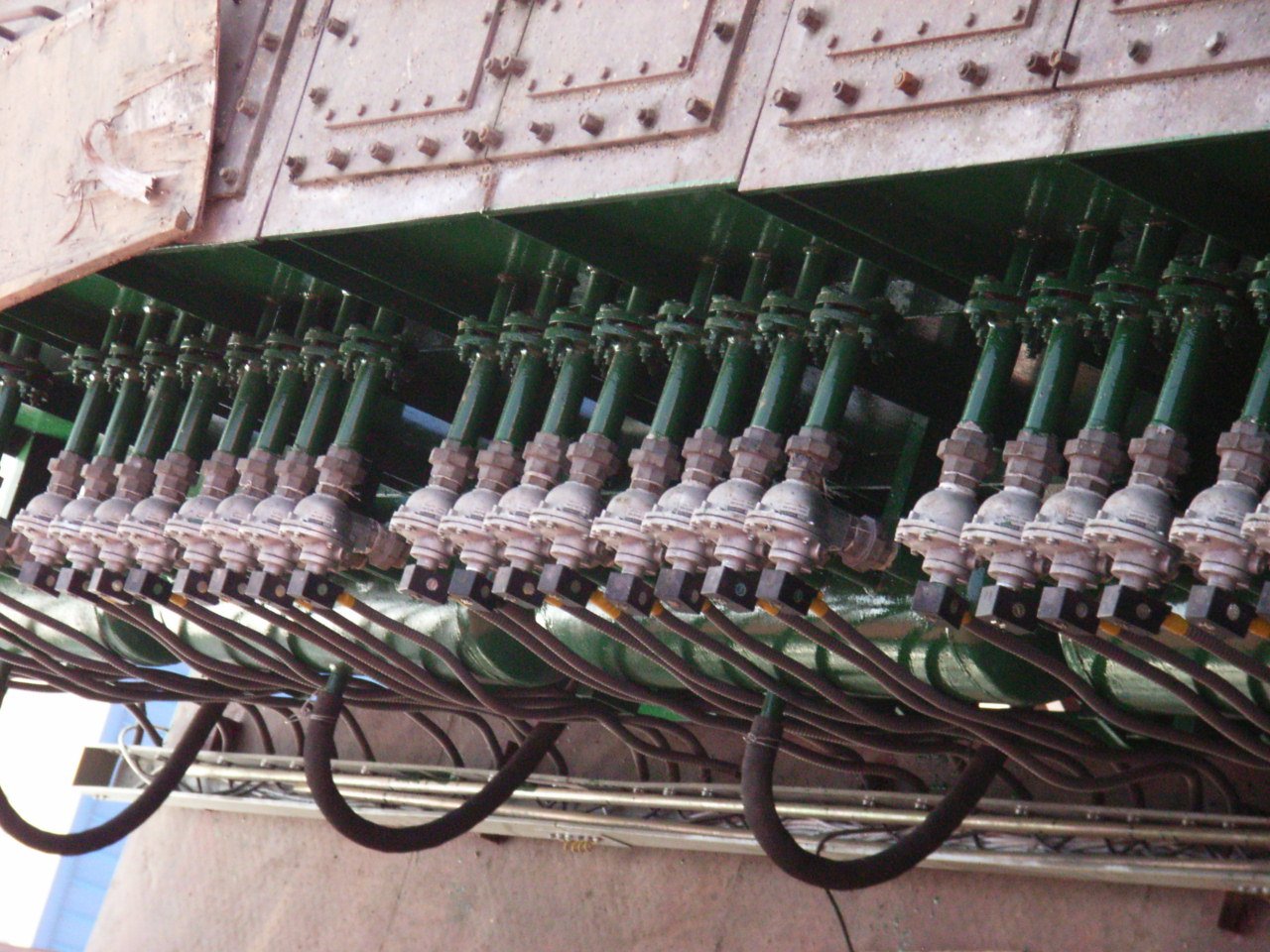

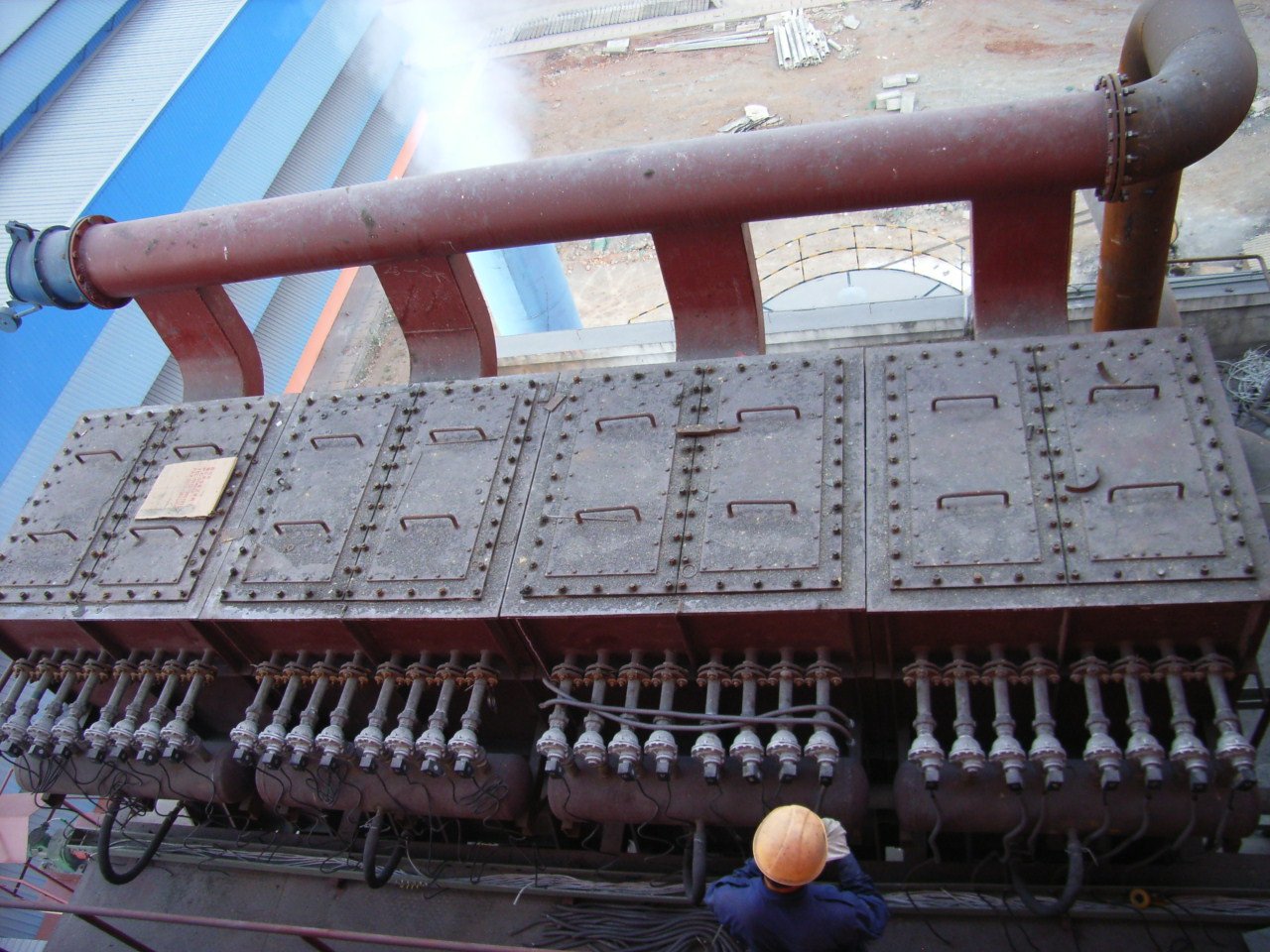

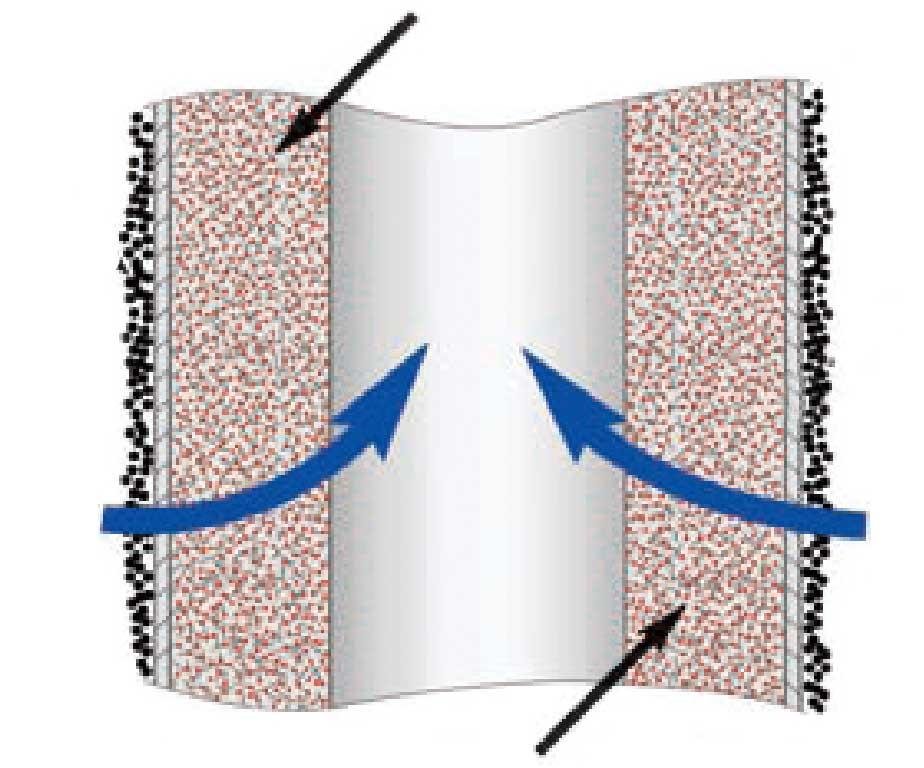

The system consists of an air manifold, pulse valves, blow pipes, cage/nozzle assembly and differential pressure controller. Triggered row by row by pressure drop or timer, each pulse valve releases a burst of compressed air that, through orifices and venturis, induces several times its own volume of secondary air into the filter media, generating a pressure wave that strips the dust cake in one piece. Blow pressure, orifice size and pulse width are customized per media type, balancing cleaning intensity with media life.

02 Working Principle

Cleaning performance depends on matching air volume, pressure and timing: manifold volume is sized per valve count to keep pressure drop within 20% during consecutive pulses; diaphragm life and response determine pulse consistency. On-demand cleaning by pressure drop saves over 30% air versus timed cleaning and avoids over-cleaning. Spray uniformity directly affects local media wear and outlet emission - nozzle-to-media alignment must be maintained within millimeters.

03 Advantages

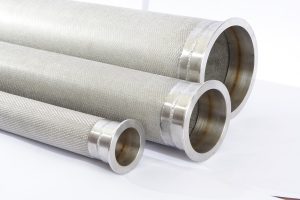

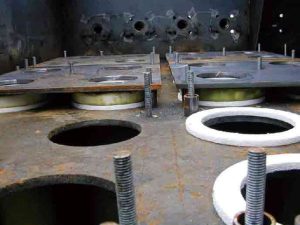

  • 0.4-0.6 MPa blow pressure, low-pressure high-flow design suits rigid ceramic tubes; 2. Row-by-row / compartment cleaning allows online maintenance without shutdown; 3. On-demand cleaning by pressure drop saves over 30% air and prevents over-cleaning; 4. Long diaphragm life with high-temperature manifolds and dry air supply; 5. Fits ceramic tubes, metal cartridges and fabric bags with matching nozzles.

04 Applications

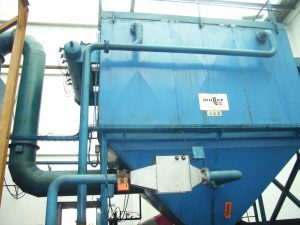

Supplied as OEM cleaning systems for new dust collectors and as retrofits for existing units - pulse valve replacement, manifold upgrade and troubleshooting for high dust load, cake blinding and poor cleaning performance.

Sizing & selection Q&A

Can particulate stay below 10 mg/Nm³?

On normal duty, yes. With very high inlet loading or sticky dust, a pilot run sets the filtration velocity first so acceptance is not at risk.

Who handles site installation?

Site supervision can be supplied, or remote support only; civils and steel structure usually stay with the owner.

Is leak detection online?

Online leak detection locates a failed compartment during operation, avoiding a full teardown.

What do you need from me to quote?

Flow rate, temperature and gas composition, plus the installation envelope. Those three are enough for a proposal; the rest is settled at technical agreement stage.

Applications

OEM duty Cleaning retrofit Valve replacement Performance upgrade

All data above are obtained under specific test conditions; the actual solution must be engineered to site conditions. AIFILTECH provides custom design and sizing based on actual gas volume, temperature, dust characteristics and emission limits.
