AIFILTECH Nickel Mesh - Pure Nickel Woven Wire Mesh

Mesh Range 20~400 mesh
Structure Multi-layer sintered
Material N4/N6 pure nickel

Product Introduction

Nickel mesh is plain or twill woven from pure nickel wire with precise openings, alkali-resistant and conductive - for electrolyzer electrodes and current collectors, batteries, sieving and EMI shielding, 2-300 mesh (including AEM electrolyzer mesh).

Specifications

MaterialN4/N6 纯镍、镍合金
Mesh count20-400 目 (customizable)
结构单层/多层复合烧结

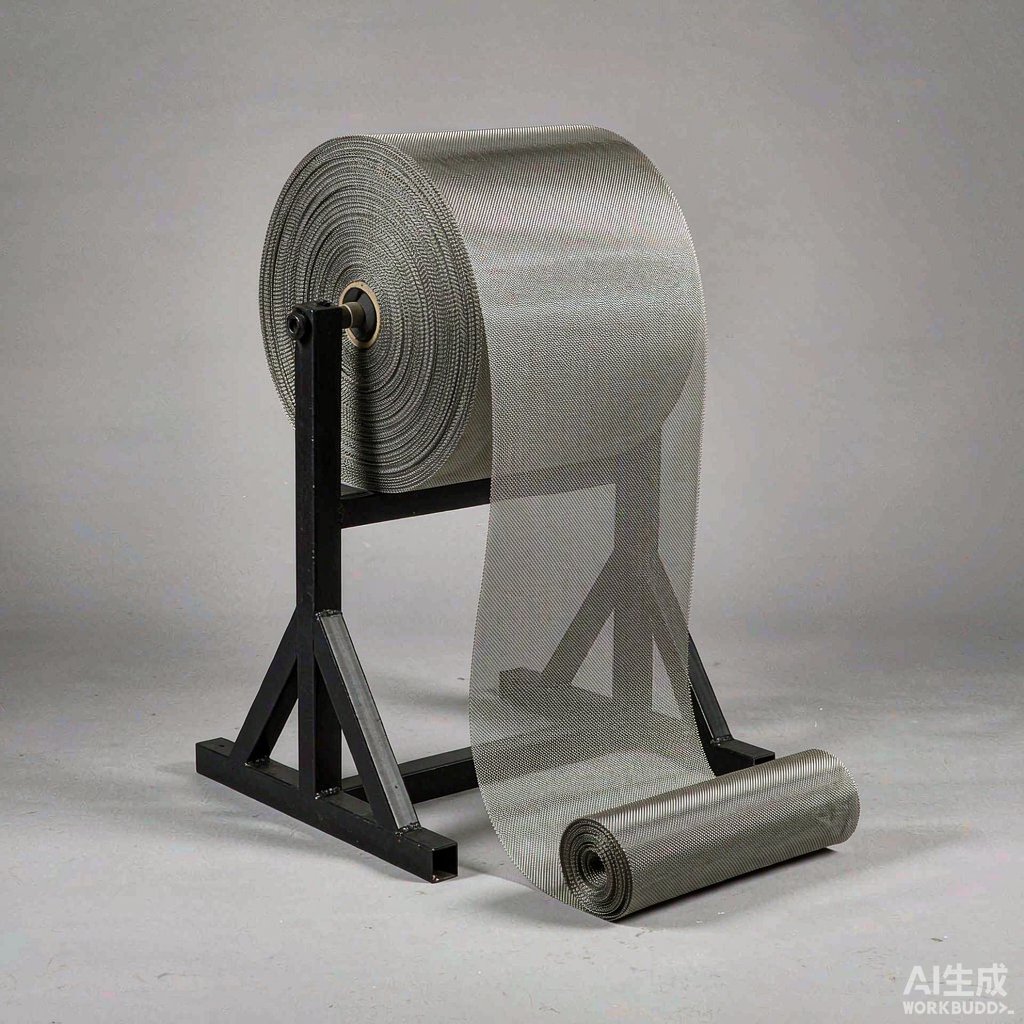

幅面卷材/片材 customizable
特征网孔均匀、强度高
ApplicationAEM 电解槽、过滤、屏蔽

Detailed Overview

01 Product Overview

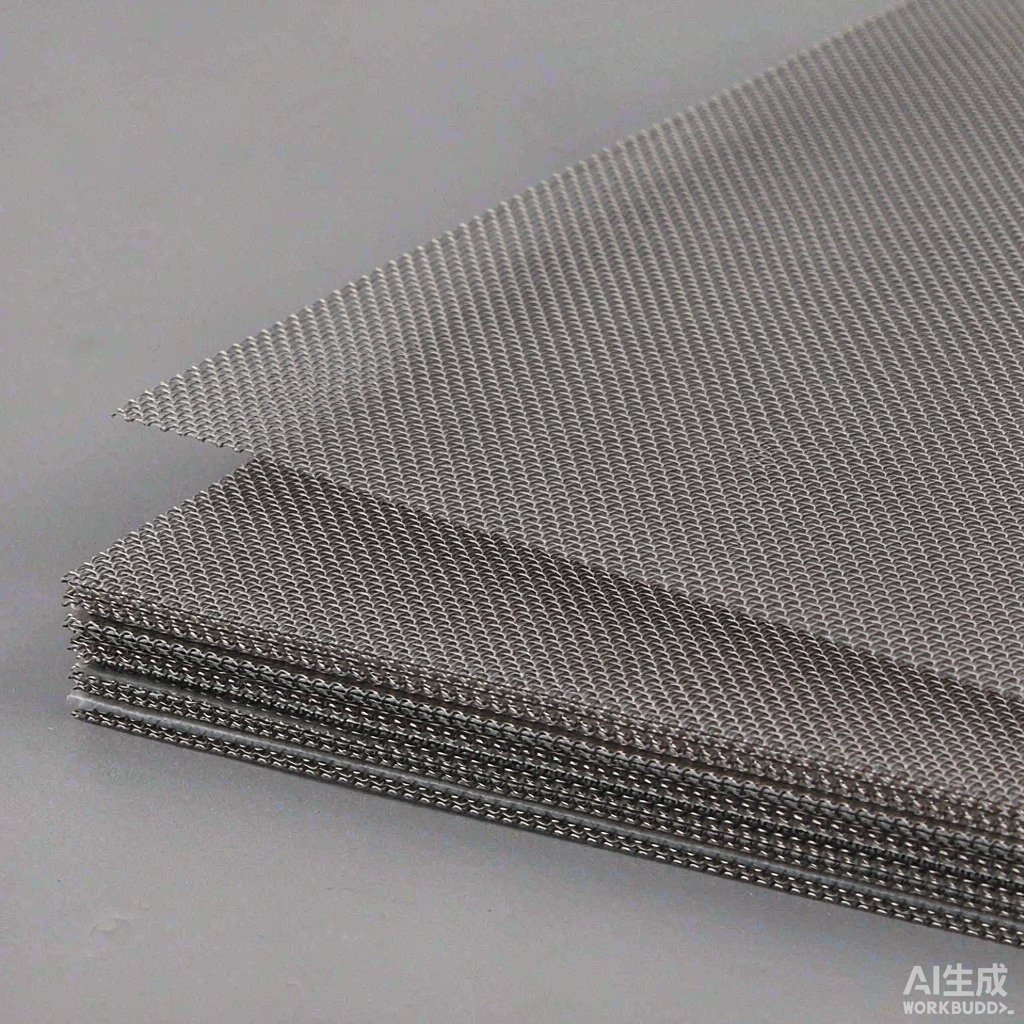

Nickel mesh is plain or twill woven from pure N4/N6 nickel wire with a flat surface, uniform openings and precise warp/weft diameters. Pure nickel resists alkali and neutral salt spray and welds well. Besides standard rolls, meshes can be blanked into discs or strips, spot-welded and edge-wrapped as ready-to-fit parts.

02 Performance & Mechanism

Nickel mesh is precision-woven from N4/N6 pure nickel wire, available as single-layer plain/twill weave or multi-layer composite sintered structure. After rolling and sintering, the staggered pore layers form a pore-size gradient from surface to core, combining filtration accuracy, dirt-holding capacity and mechanical strength - overcoming the clogging and deformation weaknesses of single mesh. As AEM electrolyzer diffusion layer / current collector it offers high open area and low resistance; laminating with nickel felt further improves support. Also widely used for liquid filtration, gas-liquid distribution and EMI shielding.

03 Advantages

  • Full 2-300 mesh range with precise apertures; 2. Pure N4/N6 nickel - alkali-resistant and conductive; 3. AEM electrolyzer specific mesh counts and wire diameters; 4. Blanking, spot welding and edge wrapping available; 5. Rolls and cut pieces with stable lead time.

04 Applications

For AEM/alkaline electrolyzer electrodes and collectors, NiMH and power battery electrodes, melt filtration, sieving, EMI shielding and food-grade screens. Custom mesh assemblies to drawing.

Sizing & selection Q&A

Which material, and up to what temperature?

Pure nickel N4/N6 and nickel alloys. Nickel's useful ceiling depends on the atmosphere rather than one number — oxidising service limits it well below the melting point, while reducing or alkaline service allows more headroom. Grade and wire diameter are fixed per duty.

Can it be built to drawing?

Yes — tooling for moulded parts, cut-to-size for sheet and felt, welded assemblies included.

Minimum order and lead time?

Small trial batches are accepted and common sizes are held in stock.

Can we validate a sample first?

Yes. A small batch can be produced from your drawing or sample, run on your line, and scaled up only after both sides accept the result.

Applications

Electrolyzer electrodes Battery electrodes Sieving Custom
Need the full technical data? Download the PDF datasheet for complete technical data, key figures and selection guidance.
Download Datasheet

All data above are obtained under specific test conditions; the actual solution must be engineered to site conditions. AIFILTECH provides custom design and sizing based on actual gas volume, temperature, dust characteristics and emission limits.
