AIFILTECH Sintered Metal Flame Arrestor Disc & Explosion Vent

Flow resistance Low
Temperature High
Explosion protection Quench-type flame containment
Customisation Micron-scale pores to spec

Product Introduction

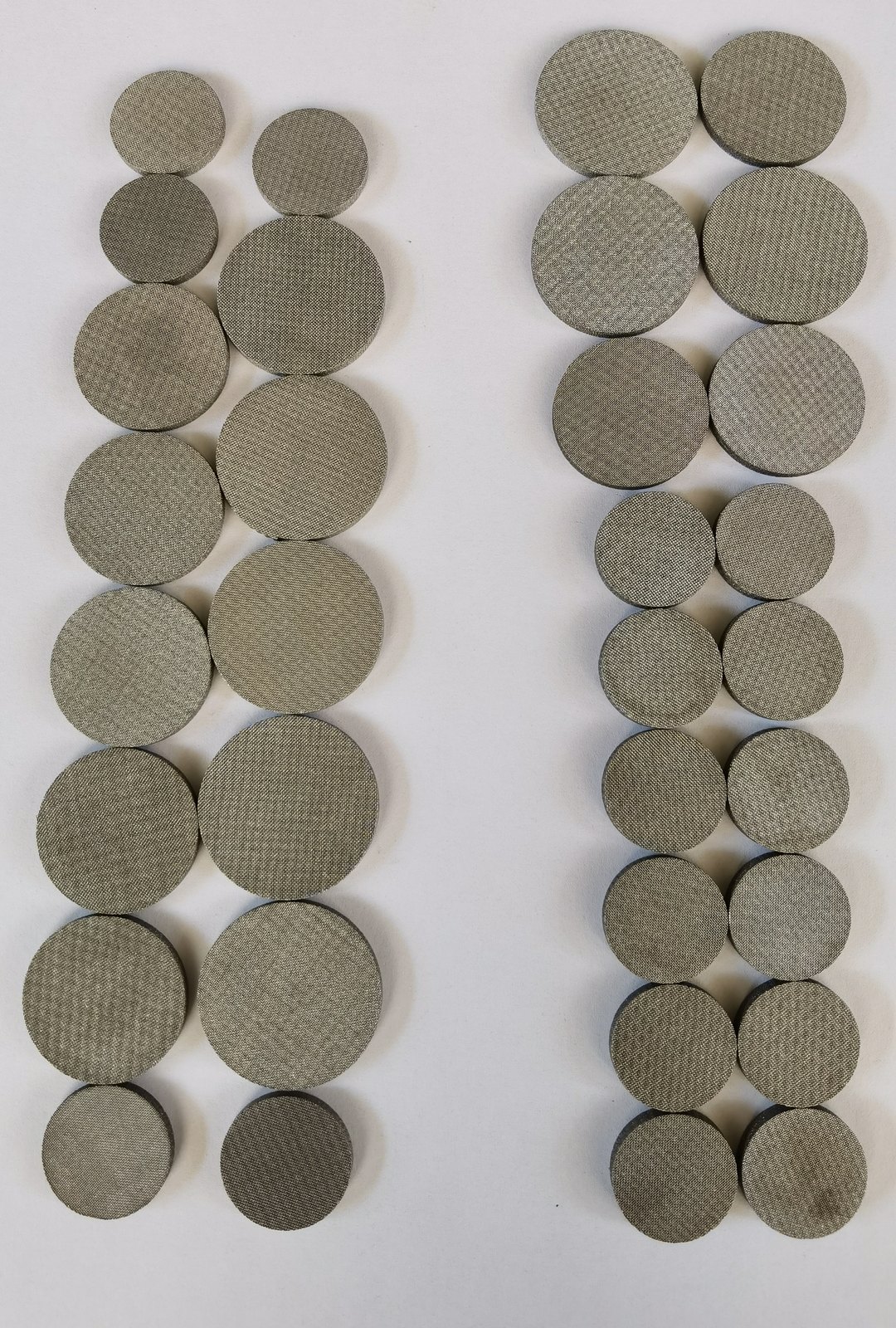

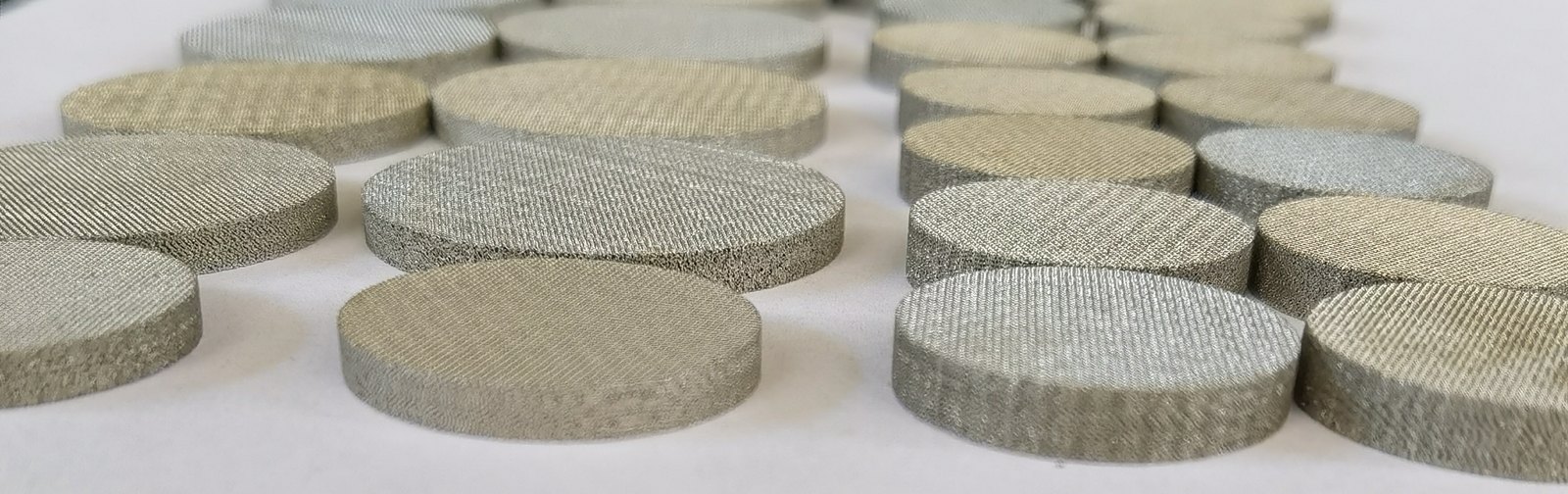

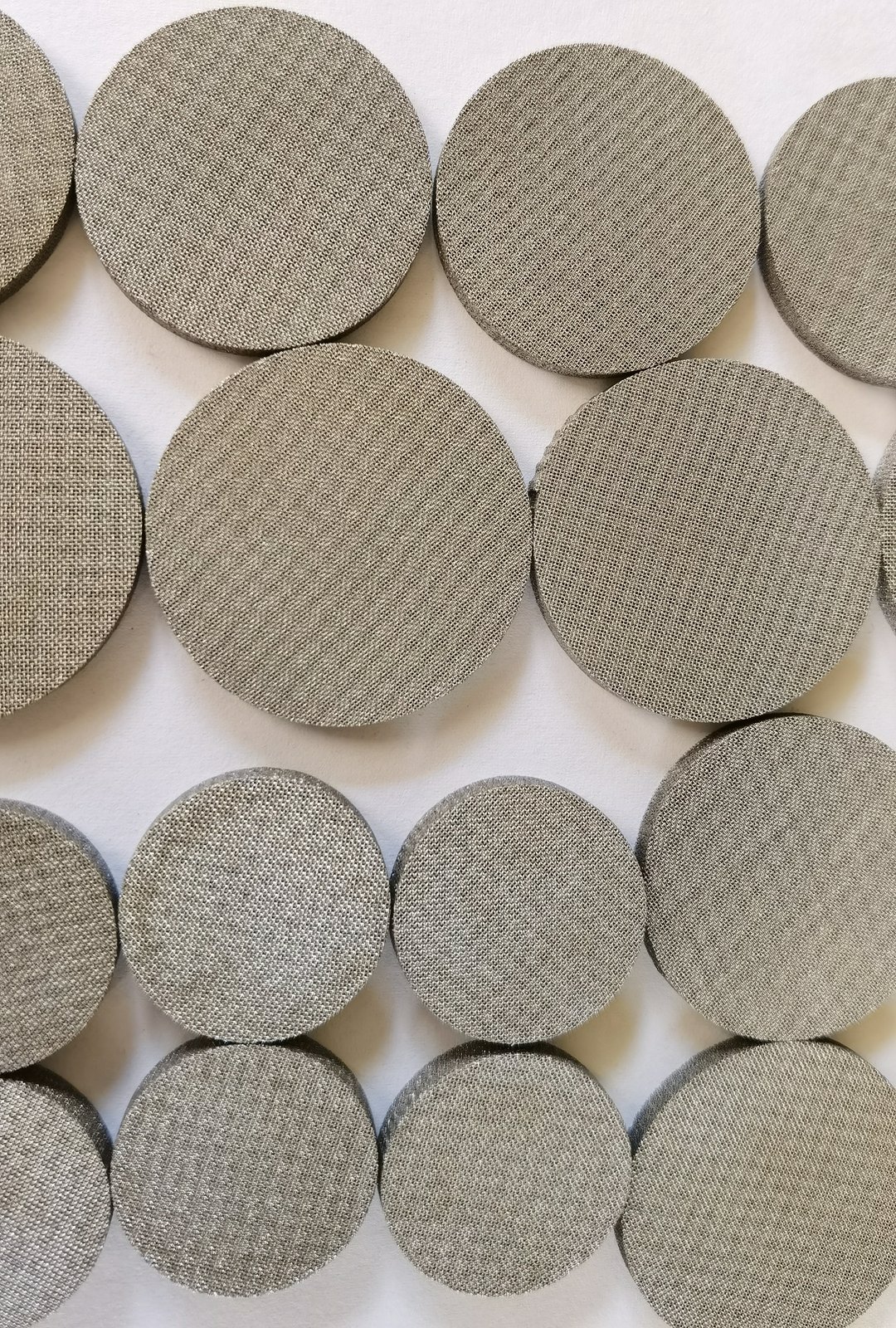

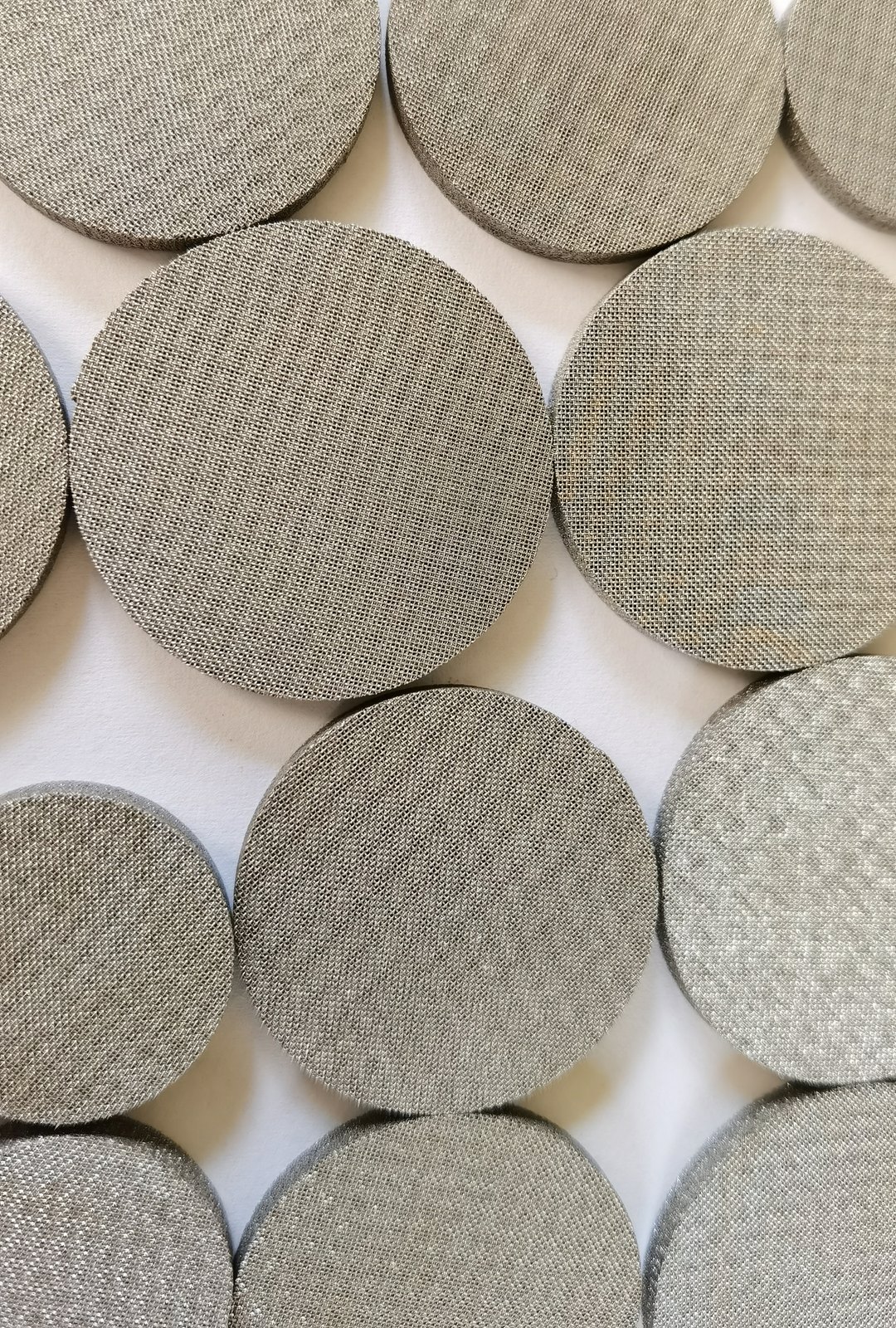

AIFILTECH sintered metal flame arrestor discs are vacuum-sintered from spherical stainless steel powder into a porous disc with micron-scale interconnected pores. The tortuous pore structure quenches flame propagation while keeping breathing resistance low. Typical uses include tank breather vents, pipeline flame arresters, battery pack pressure-relief ports and gas equipment where flame containment is required.

Specifications

FeatureSintered metal
CustomYes
BrandAIFILTECH

Detailed Overview

01 Product Overview

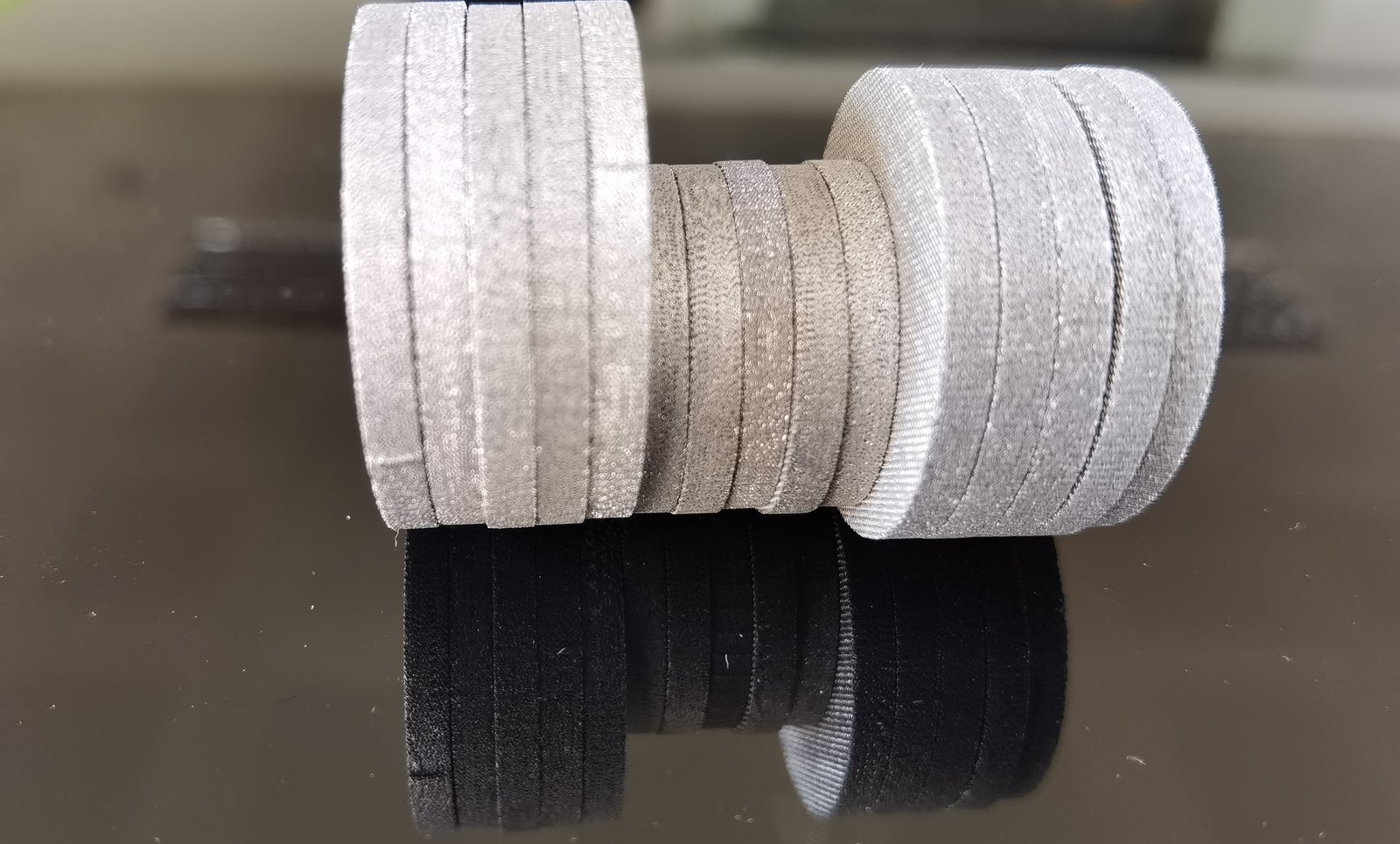

The disc is sintered from multiple layers of irregularly packed spherical powder into one solid body with tortuous, interconnected channels. When a flame enters, the intense heat-sink effect of the channel walls quenches the flame front within a few millimetres, so it cannot propagate to the other side - gas flows through, flame does not. Diameter, thickness and pore size are all customisable; the disc can be supplied with a flange, a sealing ring, or press-fitted directly into the housing.

02 Working Principle

Gas entering the disc is split into countless tiny streams through the tortuous sintered channels. The large channel-wall area absorbs combustion heat and quenches free radicals at the walls, extinguishing the flame inside the pores, while the gas itself passes through freely.

03 Advantages

  • Vacuum sintered, uniformly interconnected pores with low flow resistance; 2. Quench-channel design reliably stops flame propagation; 3. 316L or Hastelloy options - corrosion resistant, high temperature, weldable; 4. Micron-scale pore size, diameter and thickness fully customisable; 5. High integral strength, withstands repeated pressure shocks without shedding particles.

04 Applications

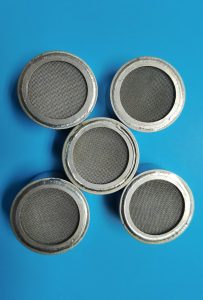

Used in storage-tank breather vents, gas pipeline flame arresters, lithium battery pack relief valves and hydrogen / fuel-gas equipment. Custom samples can be made to customer drawings.

Sizing & selection Q&A

Can it be built to drawing?

Yes — tooling for moulded parts, cut-to-size for sheet and felt, welded assemblies included.

Minimum order and lead time?

Small trial batches are accepted and common sizes are held in stock.

Can we validate a sample first?

Yes. A small batch can be produced from your drawing or sample, run on your line, and scaled up only after both sides accept the result.

What do you need from me to quote?

Flow rate, temperature and gas composition, plus the installation envelope. Those three are enough for a proposal; the rest is settled at technical agreement stage.

Applications

Flame Arresting Pressure Balancing Custom-Built

All data above are obtained under specific test conditions; the actual solution must be engineered to site conditions. AIFILTECH provides custom design and sizing based on actual gas volume, temperature, dust characteristics and emission limits.
