AIFILTECH Titanium Felt - Sintered Titanium Fiber Felt

Porosity 50%~75%
Pore Size 18~50μm
Sheet Width 800×1500mm

Product Introduction

Titanium felt is made by sintering laid titanium fibers, offering high porosity, corrosion resistance and good conductivity, resistant to seawater and chloride attack - for high-temperature filtration, electrode substrates, hydrogen recombination and seawater electrolysis. Thickness and porosity customizable.

Specifications

Thickness0.2-1.0 mm (customizable)
Thickness均匀性±0.02 mm
Porosity50%-75% (customizable)
孔径18-50 μm
透气度800-1000 L/(min·dm²) @200 Pa
抗弯强度60-100 MPa
钛纯度≥99.5%
最大幅面800×1500 mm (customizable)

Detailed Overview

01 Product Overview

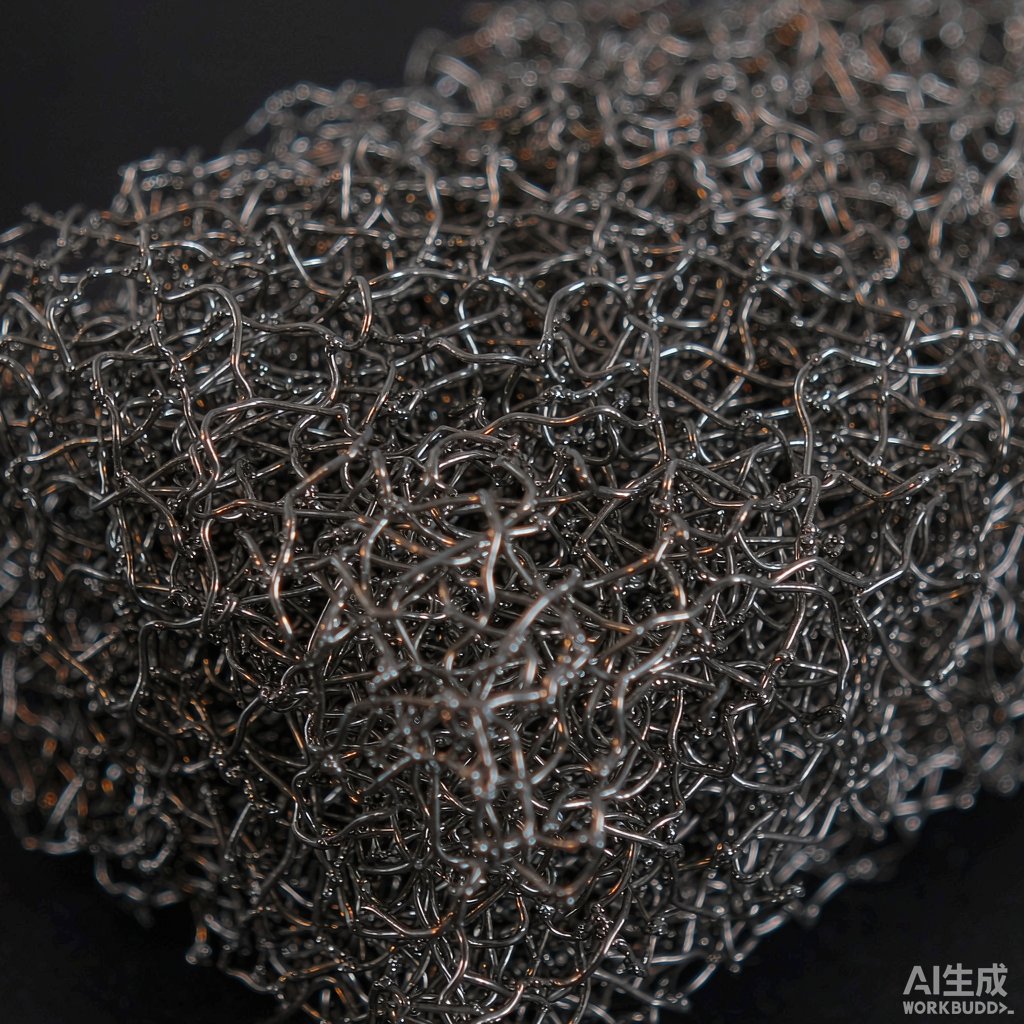

Fine titanium fibers are randomly laid and sintered at high temperature so the fiber crossings bond metallurgically, forming a strong 3D porous network. Titanium forms a passive film in oxidizing and chloride media for excellent corrosion resistance; the felt conducts well and is weldable, in 0.2-2.0 mm thickness and 50-85% porosity.

02 Performance & Mechanism

Titanium fiber felt is made of high-purity titanium fiber (Ti ≥99.5%) by non-woven laying and high-temperature sintering, forming a 3D interconnected pore network. Thickness 0.2-1.0 mm (tolerance ±0.02 mm), porosity 50-75% and pore size 18-50 μm are adjustable; air permeability reaches 800-1000 L/(min·dm2) at 200 Pa. The sintered structure is dimensionally stable with continuous conductive paths - suitable for high-temperature filtration, flow distribution and as the base material of gas diffusion layers for water electrolysis.

03 Advantages

  • Resistant to seawater and chloride with self-healing passive film; 2. 50-85% porosity, low pressure drop; 3. Good conductivity for electrodes and current collectors; 4. Weldable, blankable and multi-layer laminatable; 5. Custom thickness and rating.

04 Applications

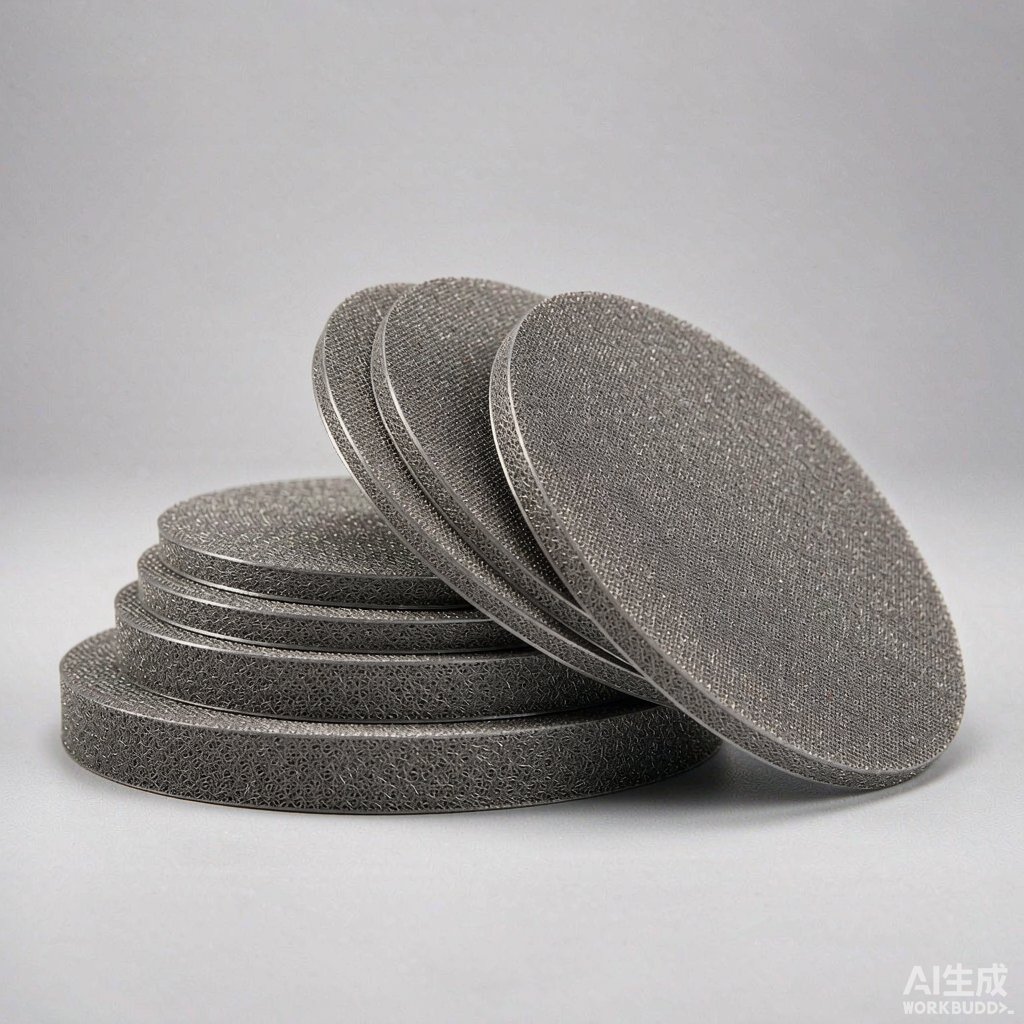

For water electrolysis and chlor-alkali electrode substrates, high-temperature chloride-containing gas filtration, hydrogen recombination devices, seawater electrolysis antifouling and acoustic damping. Sheets, discs and custom sizes available.

05 Test Curves

Electrolysis performance of titanium felt is backed by measured data: polarization curves give operating voltage across current densities, stability tests quantify long-run degradation, and surface coating further lowers contact resistance.

AIFILTECH titanium felt polarization curveAIFILTECH titanium felt stability testAIFILTECH coated titanium felt

Sizing & selection Q&A

Can it be built to drawing?

Yes — tooling for moulded parts, cut-to-size for sheet and felt, welded assemblies included.

Minimum order and lead time?

Small trial batches are accepted and common sizes are held in stock.

Can we validate a sample first?

Yes. A small batch can be produced from your drawing or sample, run on your line, and scaled up only after both sides accept the result.

What do you need from me to quote?

Flow rate, temperature and gas composition, plus the installation envelope. Those three are enough for a proposal; the rest is settled at technical agreement stage.

Applications

Electrode substrate High-temp filtration Seawater electrolysis Custom

All data above are obtained under specific test conditions; the actual solution must be engineered to site conditions. AIFILTECH provides custom design and sizing based on actual gas volume, temperature, dust characteristics and emission limits.
